U-2340

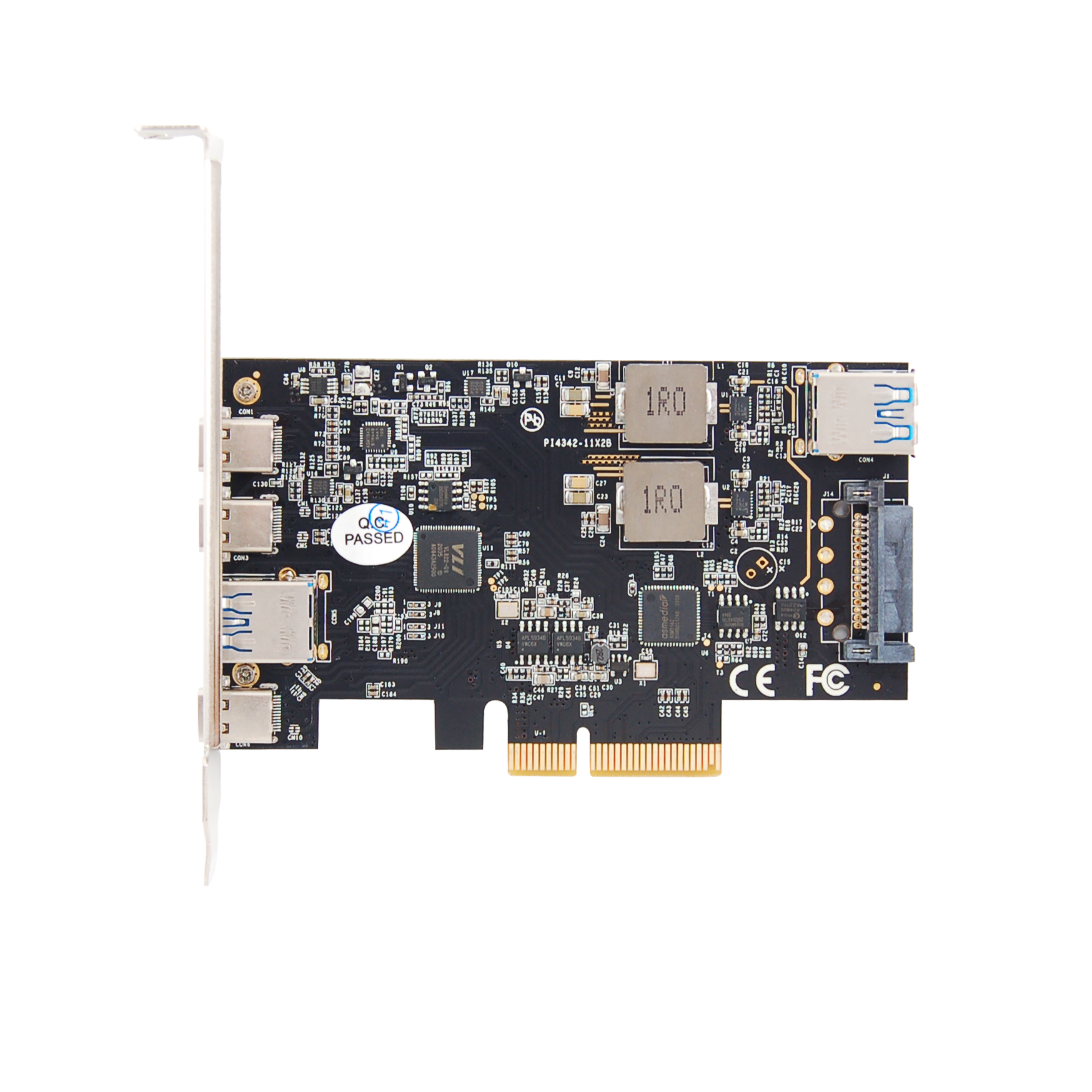

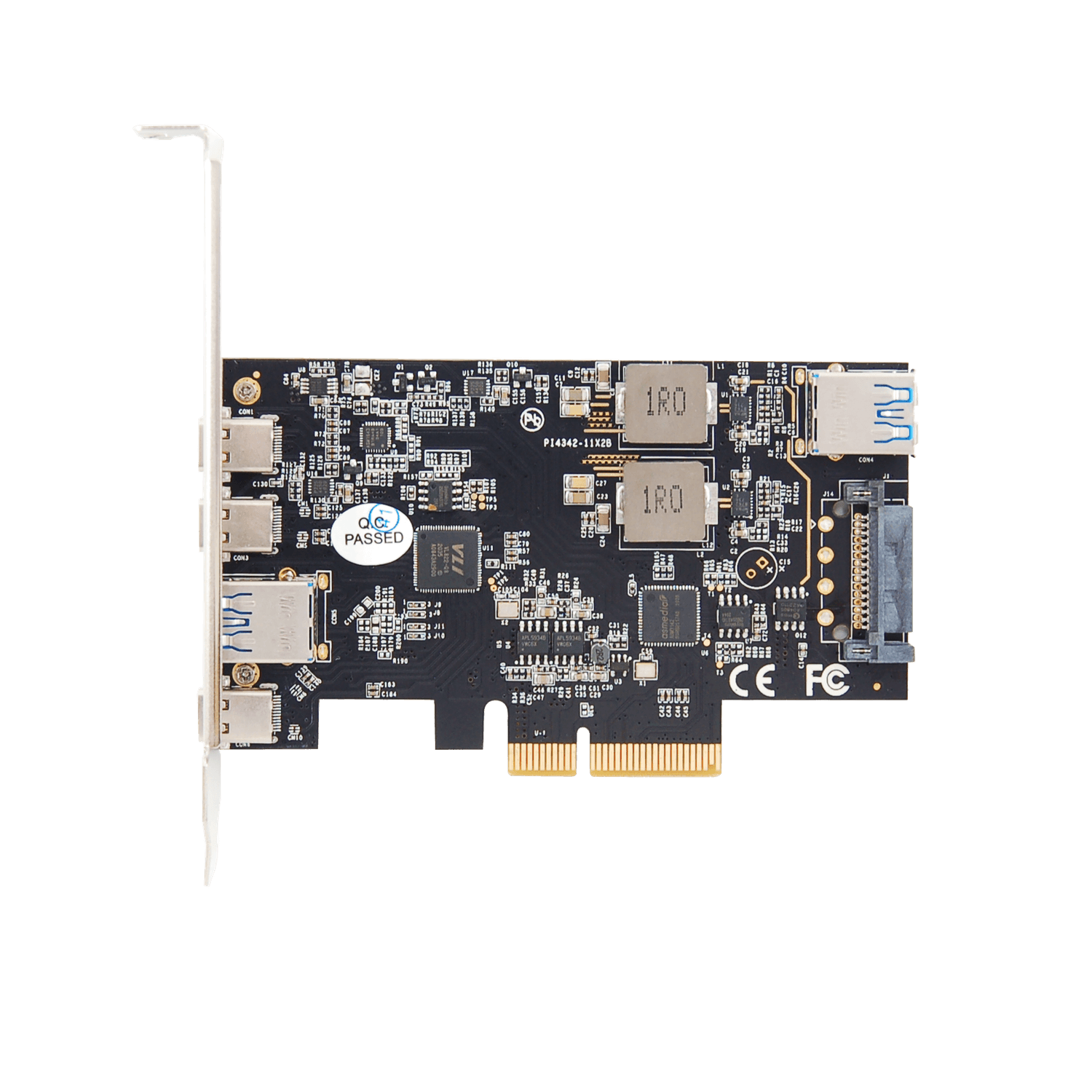

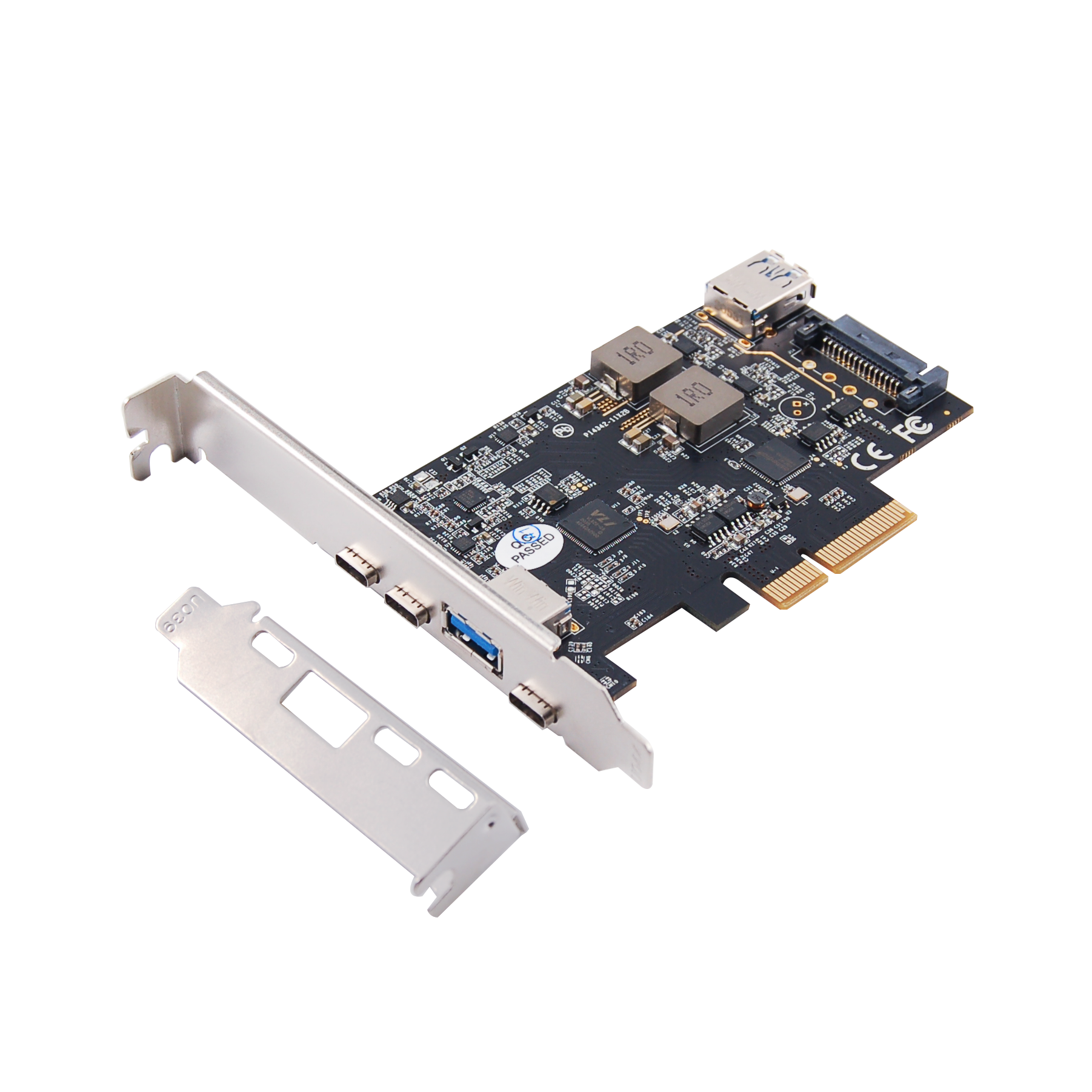

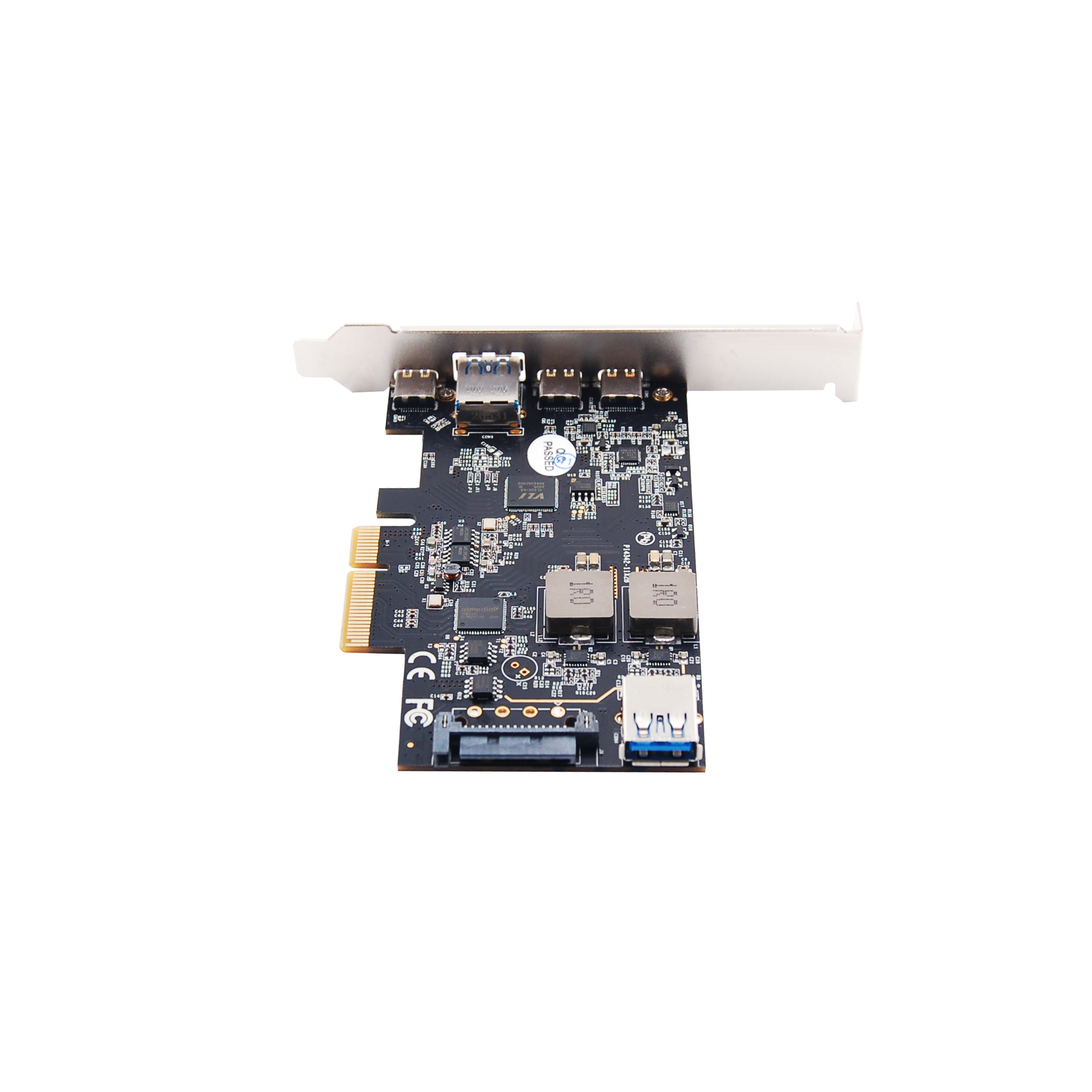

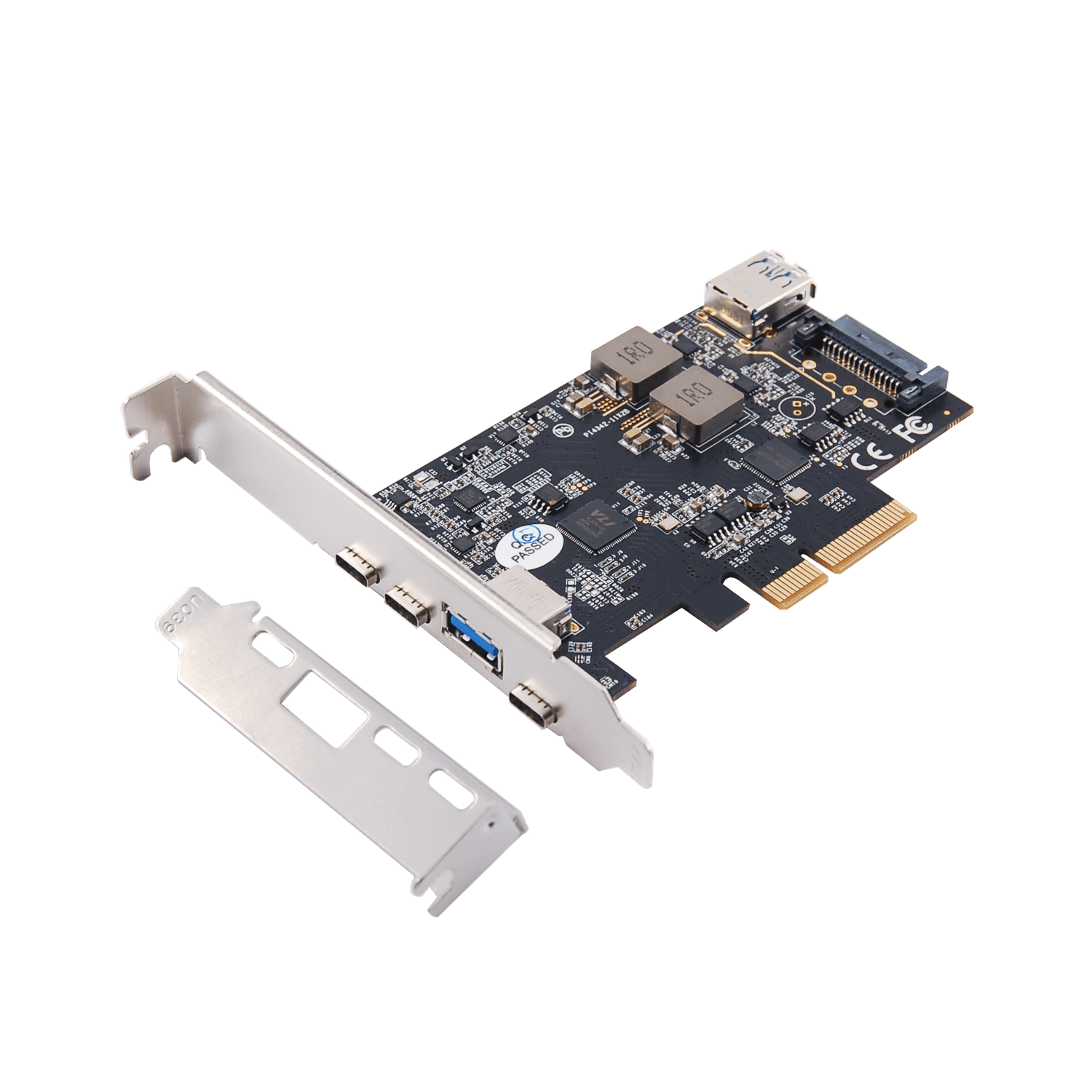

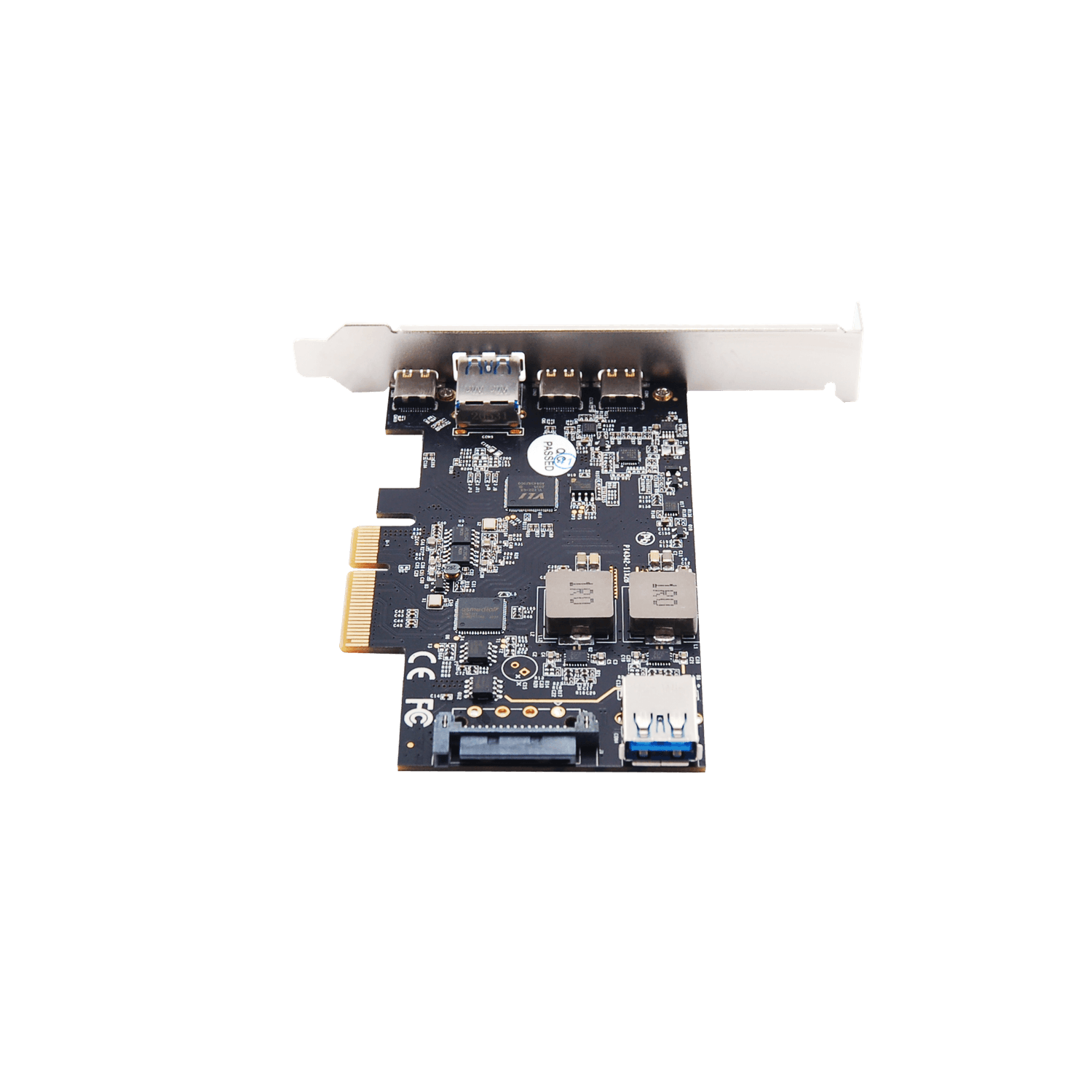

U-2340 PCIe 5-Port USB 10Gbps Host Adapter

Get a Quote ✎
2020/08/18
  • 1x Internal USB 10Gbps Type-A Port
  • 1x USB 10Gbps Type-A Port
  • 3x USB 10Gbps Type-C Ports
  • Ordering Code: U-2340
  • Part No: IE-C61-1541-00-00012
  • Solution: ASM3142+VL822

This card supporting the proprietary driver for Windows 7 and in box driver for Windows 8.0, Windows 8.1, Windows 10 and various Linux kernels. The application of ASM3142 includes Motherboard, Desktop PC, Notebooks, Workstations, Servers, Add-in cards, PCI Express based embedded platform.

Features

  • Support 5 ports of USB3.2 Gen 2.
  • Support PCI Express Gen-Ⅲ x2.
  • Up to 10Gbps Bandwidth Performance with Low Latency.
  • Support USB Battery Charging 1.2 (Only Type-A).
  • Support Multiple INs.
  • Compliant with UASP Revision 1.0.
  • Support the following speed data rates:1.5Mbps / 12Mbps / 480Mbps / 5Gbps / 10Gbps.
  • Connect to SATA power connector to PSU when required power exceeds 75W. However, the maximum power output from all 5 ports altogether is no more than 67.5W. Therefore, it is always enough with the power provided from PCIe slot.
Ordering CodeU-2340
DescriptionPCIe 5-Port USB 10Gbps Host Adapter
SolutionASM3142+VL822
Form FactorPCIe 3.0 x2
Bus Widthx2 lane PCI Express
OS Driver SupportWindows 7/8.x/10 (32/64 bit) Mac OS 10.10 or later Linux 3.5 or later
Total Bandwidth16 Gbps
Connectors1x Internal USB 10Gbps Type-A Port 1x USB 10Gbps Type-A Port 3x USB 10Gbps Type-C Ports
Data RatesUSB 10Gbps
Operating Temperature0℃ – 60℃
Storage Temperature-10℃ – 70℃
EMC StandardsCE, FCC
Dimensions122.4L x 120.9W x 21.6H mm
Package Contents1x PCIe 5-Port USB 10Gbps Host Adapter 1x User Manual 1x Low Profile Bracket
Packing InformationRetail Box Packing 40 pcs/Carton Measurment: 53.2L x 46W x 36.5H cm G.W: 5.5 Kg ; N.W: 4.5 Kg

Manual :

U-2340 User Manual 2020/08/18
↧ Download

Driver :

ASM1142_2142.rar 2024/04/26
↧ Download

Questions & Answers :

Q: After installing the PCIe USB expansion card, Windows Device Manager displays Code 10 – "This device cannot start", and connected USB devices cannot be used
Read More ›

Related Products

U-2330

U-2330 PCIe 5-Port USB 10Gbps Host Adapter

Ordering Code: U-2330
Part No: IE-C61-1441-00-00012
Solution: ASM3142+VL822

U-2320

U-2320 PCIe 5-Port USB 10Gbps Host Adapter

Ordering Code: U-2320
Part No: IE-C61-1350-00-00012
Solution: ASM3142+VL822

U-2310

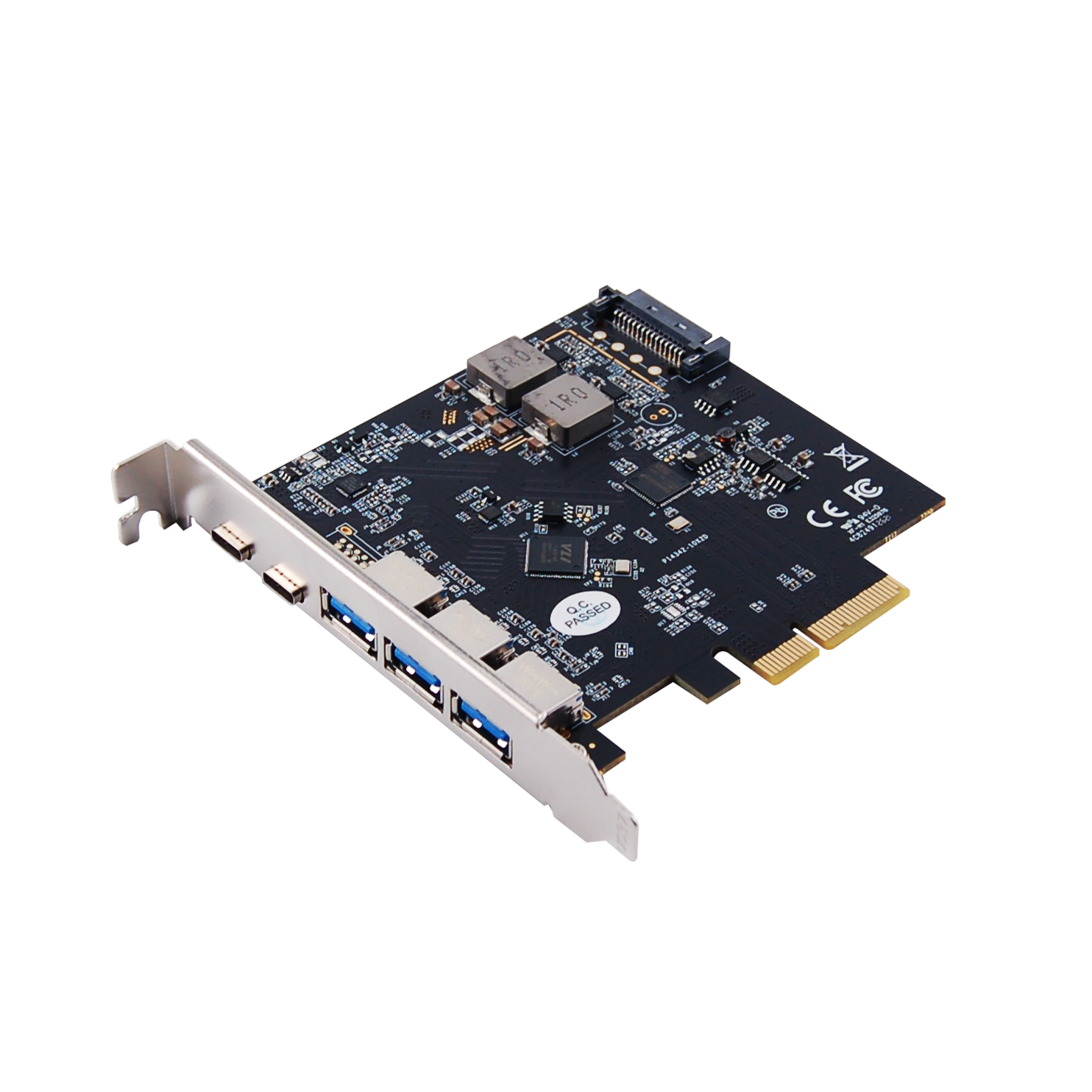

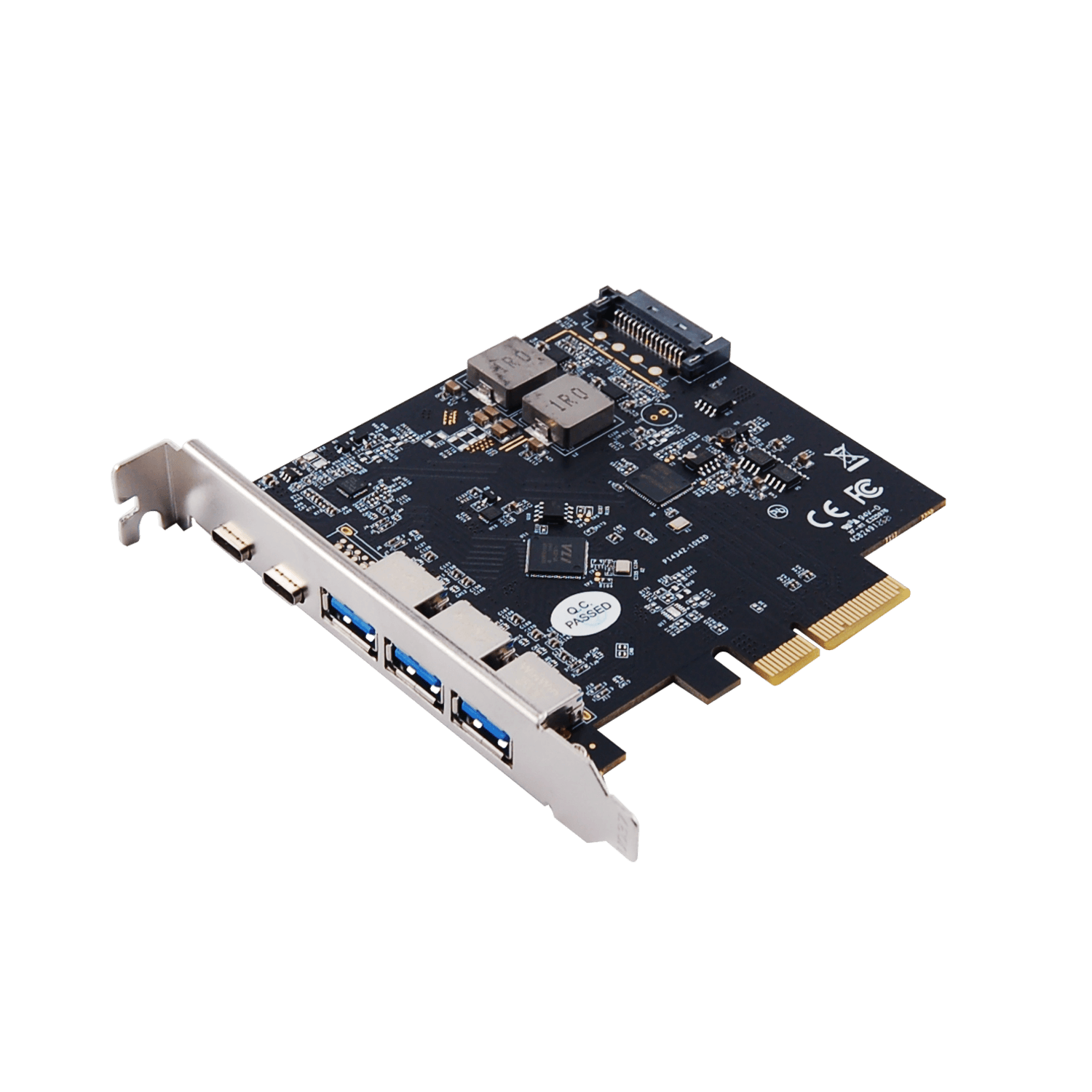

U-2310 PCIe 5-Port USB 10Gbps Host Adapter
