This card supporting the proprietary driver for Windows 7 and in box driver for Windows 8.0, Windows 8.1, Windows 10 and various Linux kernels.
The application of ASM3142 includes Motherboard, Desktop PC, Notebooks, Workstations, Servers, Add-in cards, PCI Express based embedded platform.
Features
Support 5 ports of USB3.2 Gen 2.
Support PCI Express Gen-Ⅲ x2.
Up to 10Gbps Bandwidth Performance with Low Latency.
Support USB Battery Charging 1.2 (Only Type-A).
Support Multiple INs.
Compliant with UASP Revision 1.0.
Support the following speed data rates:1.5Mbps / 12Mbps / 480Mbps / 5Gbps / 10Gbps.
Connect to SATA power connector to PSU when required power exceeds 75W. However, the maximum power output from all 5 ports altogether is no more than 67.5W. Therefore, it is always enough with the power provided from PCIe slot.
System Requirements
Windows 7/8.x/10 (32/64 bit);
Mac OS 10.10 or later;
Linux 3.5 or later;
One available PCI Express x4, x8 or x16 slots;
Package Contents

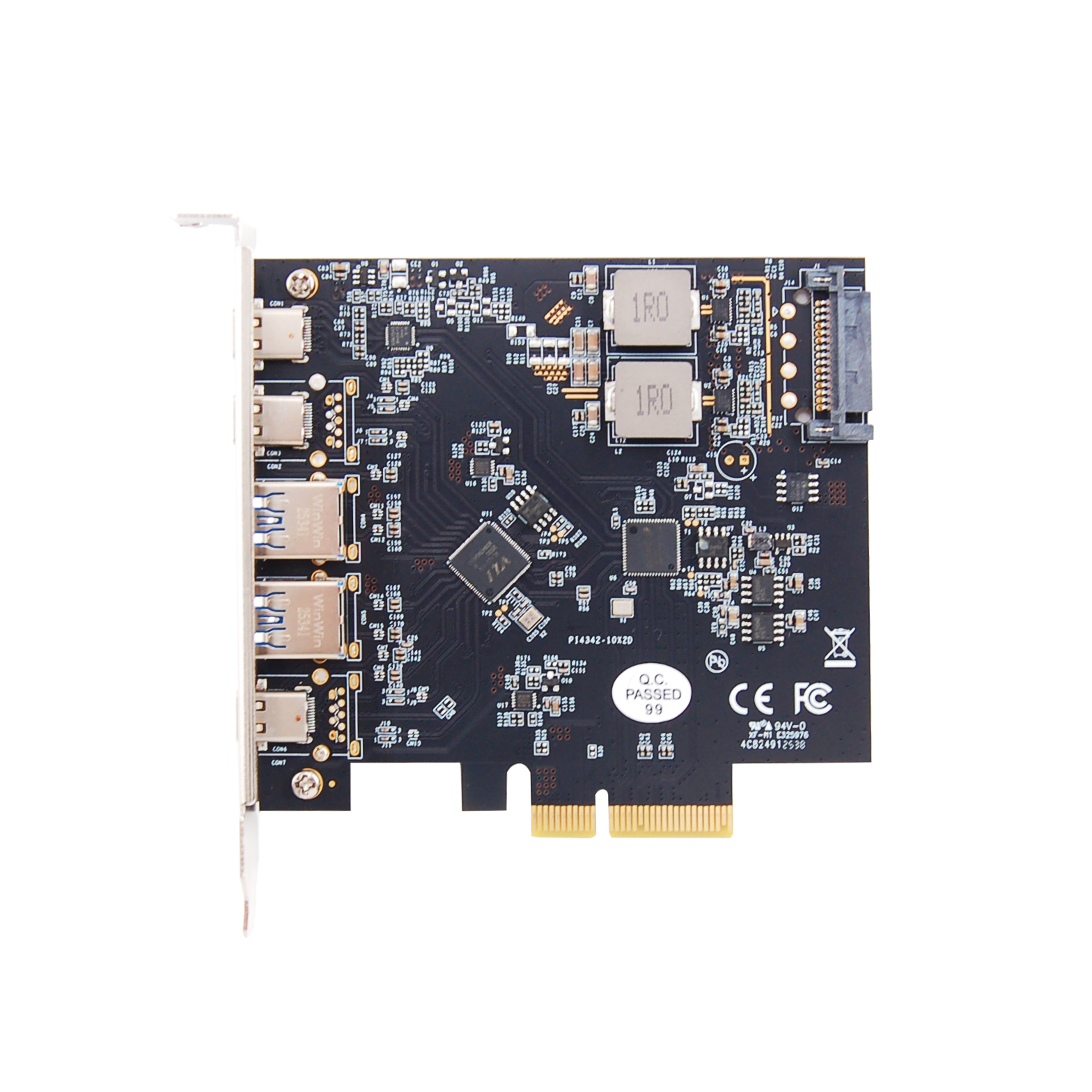

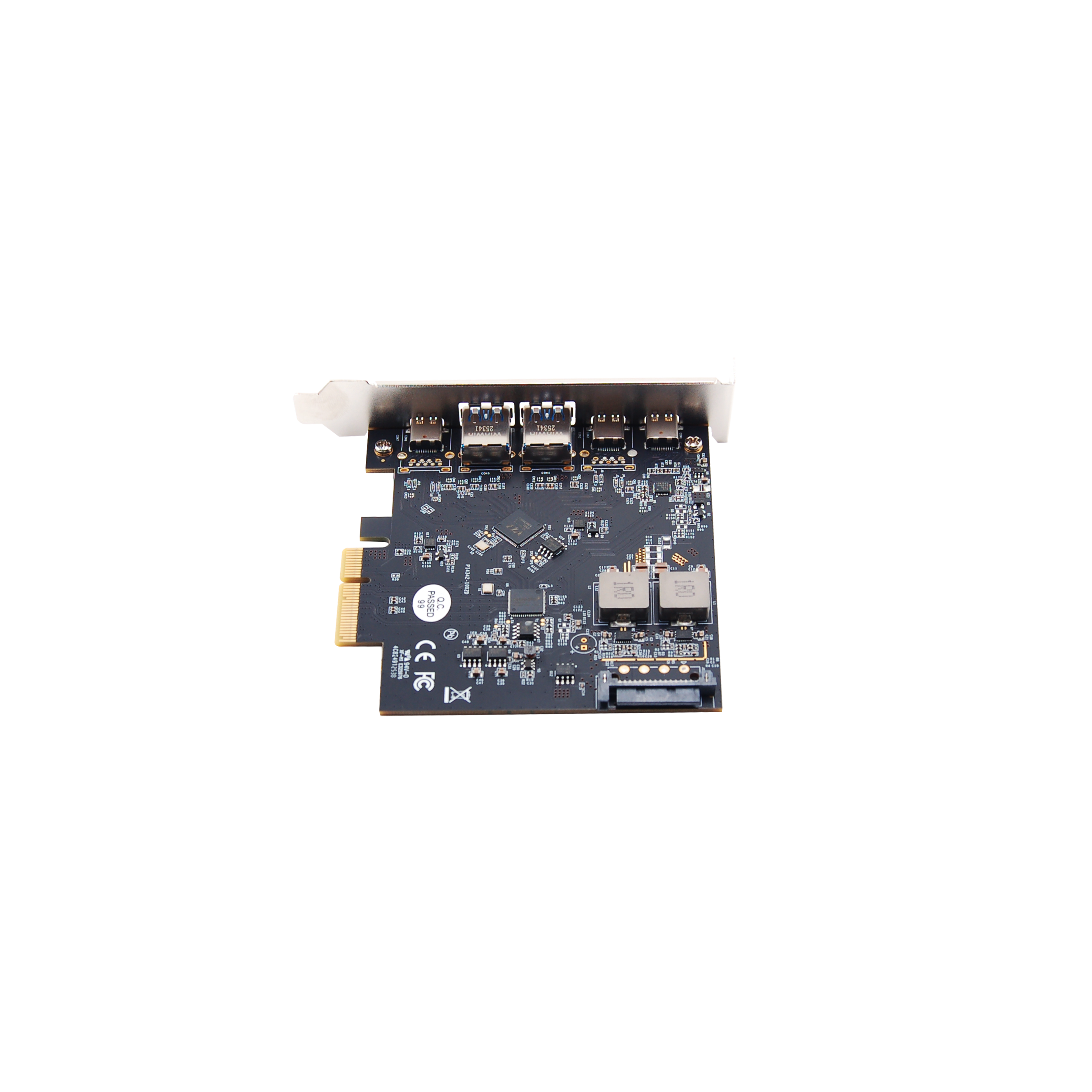

1 x PCIe 5 Ports SuperSpeed USB 10Gbps Host Adapter.
1 x User Manual.
Note: Contents may vary model dependent.
