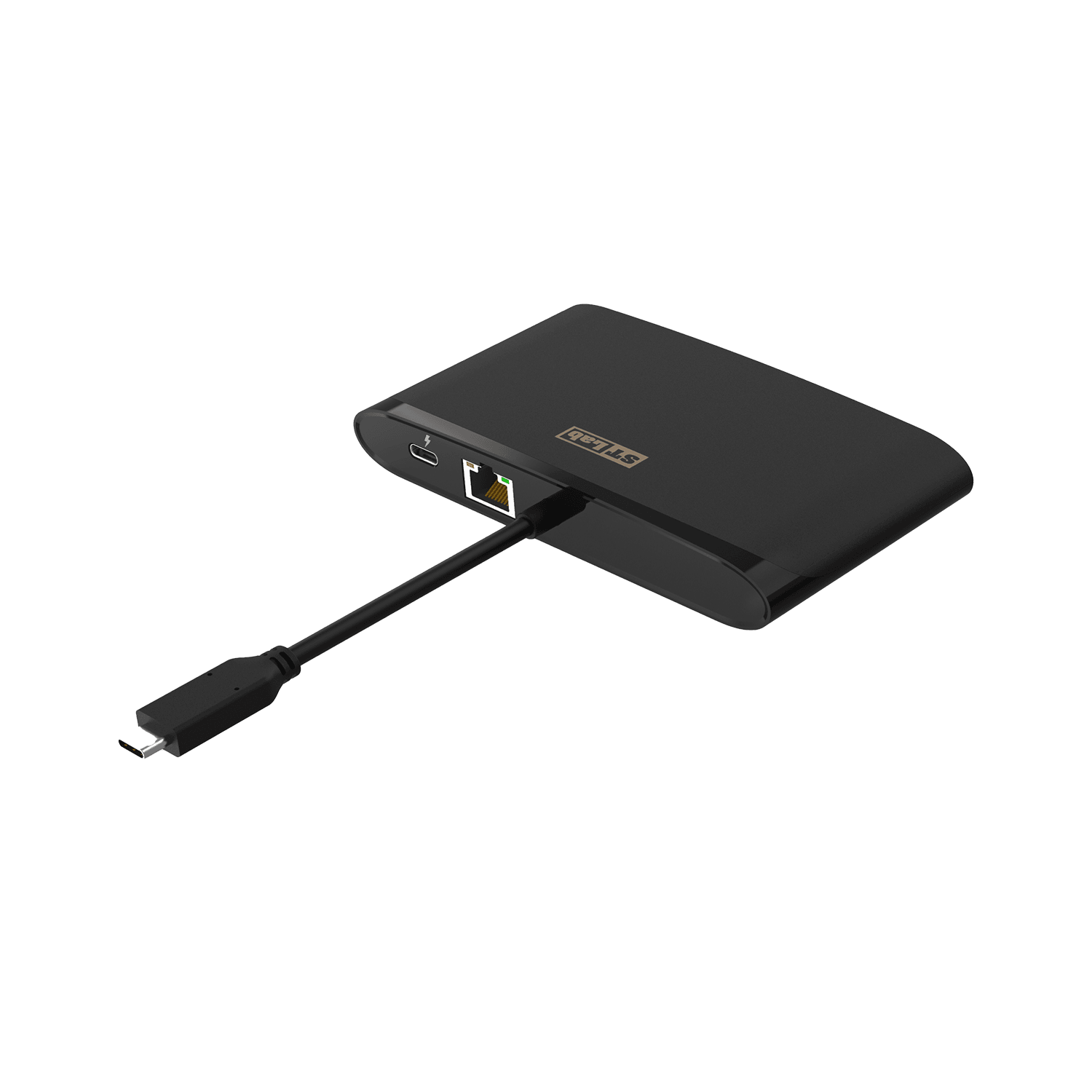

U-2140 USB 5Gbps Type-C Multiport Adapter w/PD
Get a Quote ✎
2020/05/20
- 1x HDMI Port + 1x VGA Port
- 2x USB 5Gbps Type-A Ports + 1x USB 5Gbps Type-C Port
- 1x 1GbE RJ45 Port
- 1 x USB Type-C PD pass-through Port
- Ordering Code: U-2140
- Part No: U3-C58-DS10-11-00012
- Solution: VL103Q4 + VL817 + AG6320 + RTL8153B
The USB 3.2 Gen1 Type-C Multiport Adapter w/PD for use with a computer, extending functionality for connecting other devices.
Features
- Works with USB Type-C laptop
- Compliant to USB 3.0 Specification Revision 1.0 and Specification Revision 2.0
- Support upstream charging of laptop
- Supports jumbo frame up to 9k bytes
- Compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
- Supports 100/1000Mbps Ethernet
- Compliant with HDMI 2.0, HDMI 1.4
- HDMI port support UHD 3840x2160@30Hz
- Simultaneously display via VGA outputs
- Supports Hot Plug Detection
| Ordering Code | U-2140 |
|---|---|
| Description | USB 5Gbps Type-C Multiport Adapter w/PD |
| Solution | VL103-Q4 + VL817 + AG6320 + RTL8153B |
| Bus Type | USB 5Gbps |
| OS Driver Support | Windows 7/8/8.1/10 (32/64 bit) Mac OS X v10.8 or later Linux 2.6.24 and 4.11.x or later |
| Connectors | 1x HDMI Port 1x VGA Port 1x 1GbE RJ45 Port 2x USB 5Gbps Type-A Ports 1x USB 5Gbps Type-C Port 1x USB Type-C PD Port |
| Data Rates | 1Gb/100Mb Ethernet USB 5Gbps |
| Resolution | 3840x2160 @30Hz |
| Power Delivery | PD pass-through |
| Operating Temperature | 0℃ – 45℃ |
| Storage Temperature | -10℃ – 50℃ |
| EMC Standards | CE, FCC |
| Dimensions | 70.2L x 129W x 18.5H mm | Cable 150mm |
| Package content | 1x USB 5Gbps Type-C Multiport Adapter w/PD 1x User Manual |
| Packing Information | Retail Box Packing 40 pcs/Carton Measurment: 40L x 36W x 31H cm G.W: 8.6 Kg ; N.W: 8 Kg |
