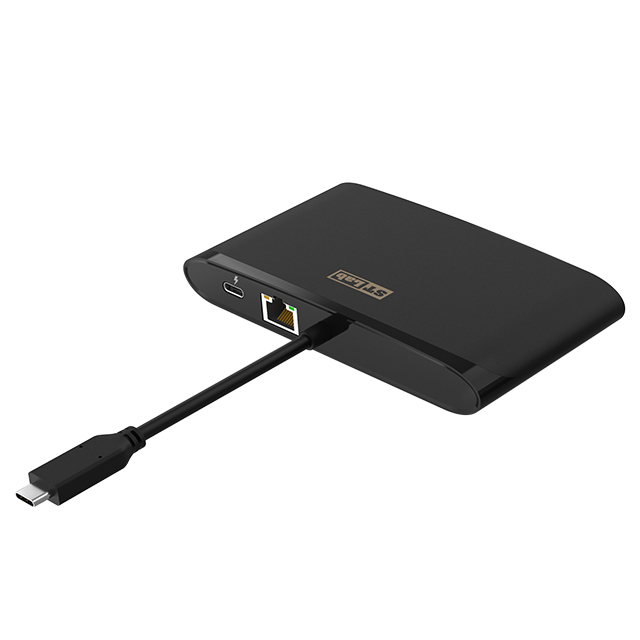

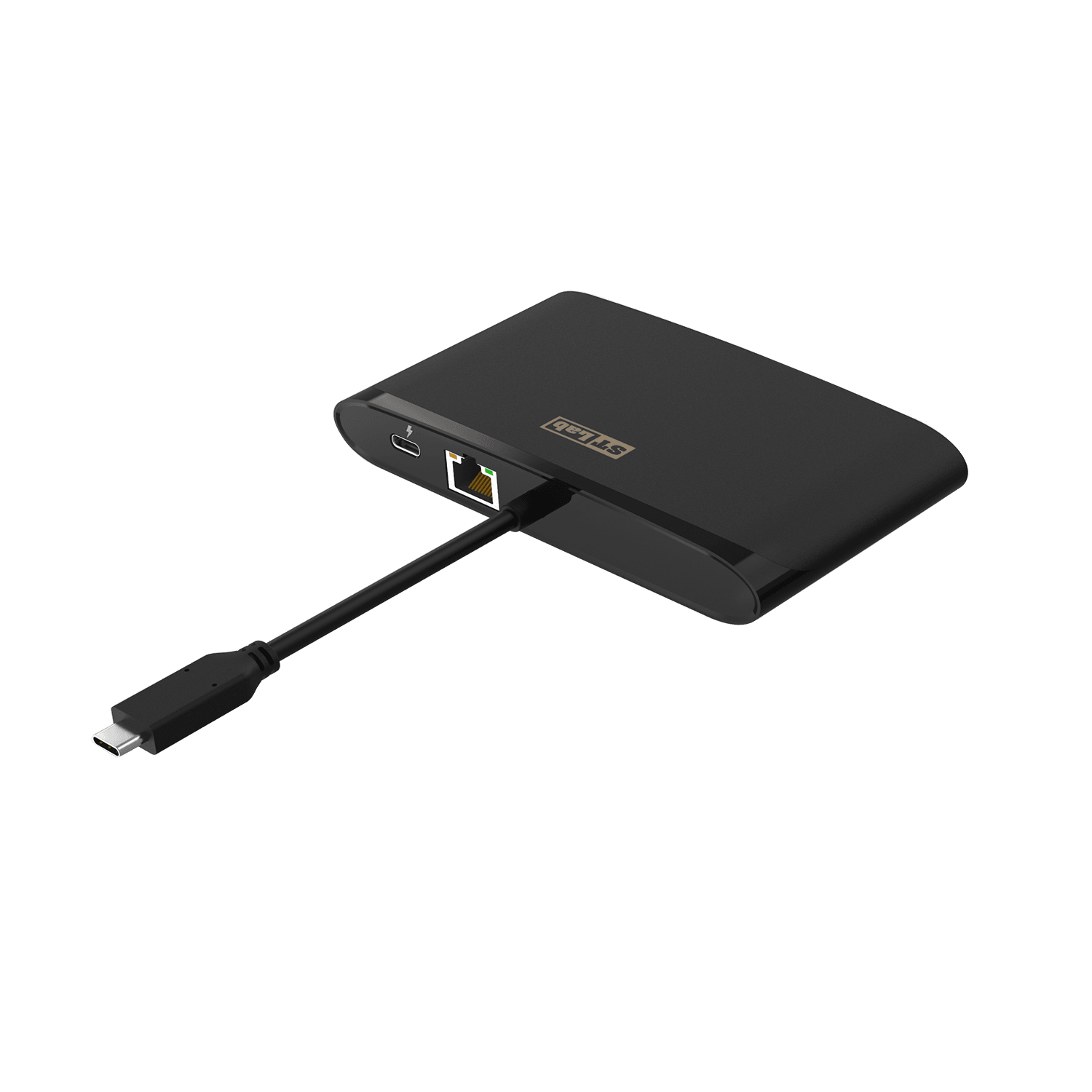

U-2130 USB 5Gbps Type-C Multiport Adapter w/PD

Name: U-2130 USB 5Gbps Type-C Multiport Adapter w/PD
Brand: ST Lab
SKU: U-2130

Get a Quote ✎

2020/05/20

The USB 3.2 Gen1 Type-C Multiport Adapter w/PD for use with a computer, extending functionality for connecting other devices.

Features

Works with USB Type-C laptop
Compliant to USB 3.2 Gen1 Specification Revision 1.0 and Specification Revision 2.0
Support upstream charging of laptop
Supports jumbo frame up to 9k bytes
Compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
Supports 100/1000Mbps Ethernet
Compliant with HDMI 2.0, HDMI 1.4
HDMI port support UHD 3840x2160@30Hz
Dedicated slot for SD and MicroSD card reader
Supports Hot Plug Detection

Ordering Code	U-2130
Description	USB 5Gbps Type-C Multiport Adapter w/PD
Solution	CH7210A+VL817+RTL8153B+GL3224
Bus Type	USB 5Gbps
OS Driver Support	Windows 7/8/8.1/10 (32/64 bit) Mac OS X v10.8 or later Linux 2.6.24 and 4.11.x or later
Connectors	1x HDMI Port 1x 1GbE RJ45 Port 2x USB 5Gbps Type-A Ports 1x USB 5Gbps Type-C Port 1x USB Type-C PD Port 1x SD Card Reader 1x Micro SD Card Reader
Data Rates	1Gb/100Mb Ethernet USB 5Gbps
Resolution	3840x2160 @30Hz
Power Delivery	PD pass-through
Operating Temperature	0℃ – 45℃
Storage Temperature	-10℃ – 50℃
EMC Standards	CE, FCC
Dimensions	70.2L x 129W x 18.5H mm \| Cable 150mm
Package content	1x USB 5Gbps Type-C Multiport Adapter w/PD 1x User Manual
Packing Information	Retail Box Packing 40 pcs/Carton Measurment: 40L x 36W x 31H cm G.W: 12.6 Kg ; N.W: 12 Kg
