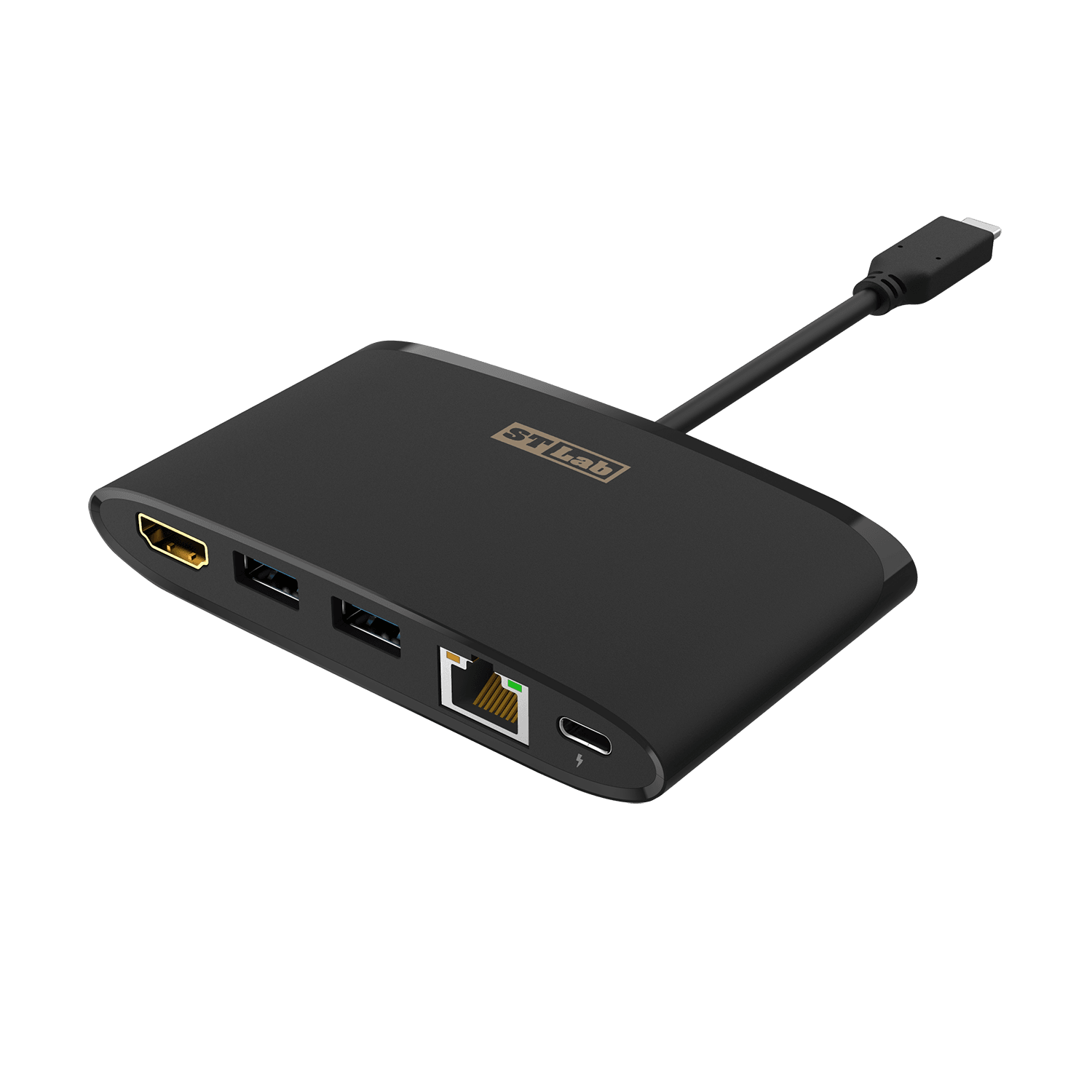

U-2120 USB 5Gbps Type-C Multiport Adapter w/ PD
Get a Quote ✎
2019/10/28
- 1x HDMI Port
- 2x USB 5Gbps Type-A Ports
- 1x 1GbE RJ45 Port
- 1 x USB Type-C PD pass-through Port
- Ordering Code: U-2120
- Part No: U3-C51-DS10-11-00012
- Solution: CH7210A+VL817+RTL8153B
Connect your Macbook or tablet to your HDMI display through your USB Type-C (DP) port using this adapter. Requires DisplayPort Alternate Mode capability.
Features
- Works with USB Type-C laptop
- Compliant to USB 3.0 Specification Revision 1.0 and USB Specification Revision 2.0Supports upstream charging of laptop
- Supports jumbo frame up to 9K bytes
- Compatible with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
- Supports 10/100/1000Mbps EthernetCompliant with HDMI 2.0, HDMI 1.4
- HDMI port support UHD 3840x2160@30Hz
- Supports Hot Plug Detection
| Ordering Code | U-2120 |
|---|---|
| Description | USB 5Gbps Type-C Multiport Adapter w/ PD |
| Solution | CH7210A+VL817+RTL8153B |
| Bus Type | USB 5Gbps |
| OS Driver Support | Windows 7/8/8.1/10 (32/64 bit) Mac OS X v10.8 or later Linux 2.6.24 and 4.11.x or later |
| Connectors | 1x HDMI Port 1x 1GbE RJ45 Port 2x USB 5Gbps Type-A Ports 1x USB Type-C PD Port |
| Data Rates | 1Gb/100Mb Ethernet USB 5Gbps |
| Resolution | 3840x2160 @30Hz |
| Power Delivery | PD pass-through |
| Operating Temperature | 0℃ – 45℃ |
| Storage Temperature | -10℃ – 50℃ |
| EMC Standards | CE, FCC |
| Dimensions | 65L x 112.6W x 18.1H mm | Cable 150mm |
| Package content | 1x USB 5Gbps Type-C Multiport Adapter w/ PD 1x User Manual |
| Packing Information | Retail Box Packing 40 pcs/Carton Measurment: 40L x 36W x 30.5H cm G.W: 8.3 Kg ; N.W: 7.7 Kg |
Manual :
U-2120 User Manual
↧ DownloadDriver :
RTL_USB_ FE_GBE_Linux.zip
↧ DownloadRTL_USB_ FE_GBE_Windows.zip
↧ DownloadRTL_USB_ FE_GBE_Mac.zip
↧ DownloadQuestions & Answers :
