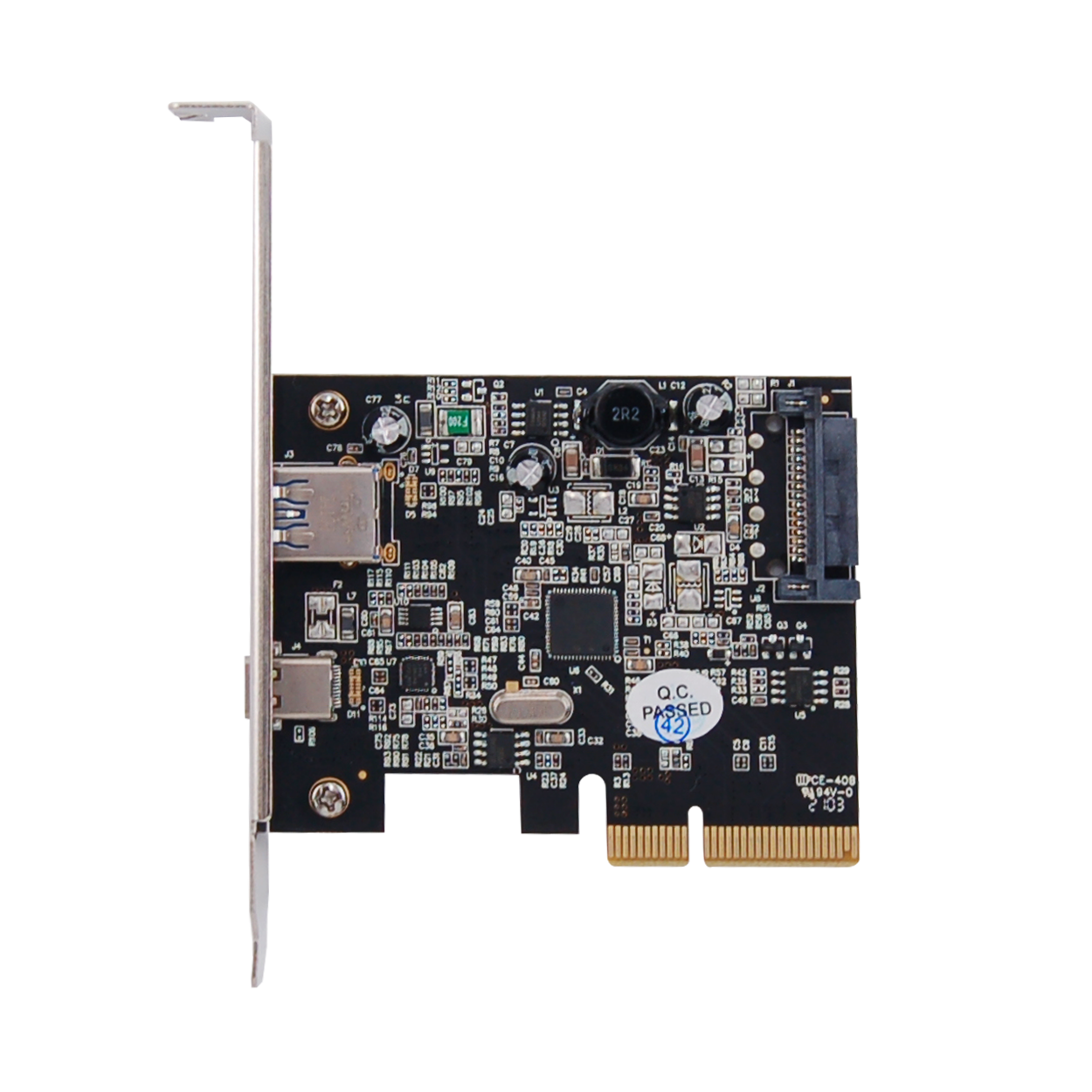

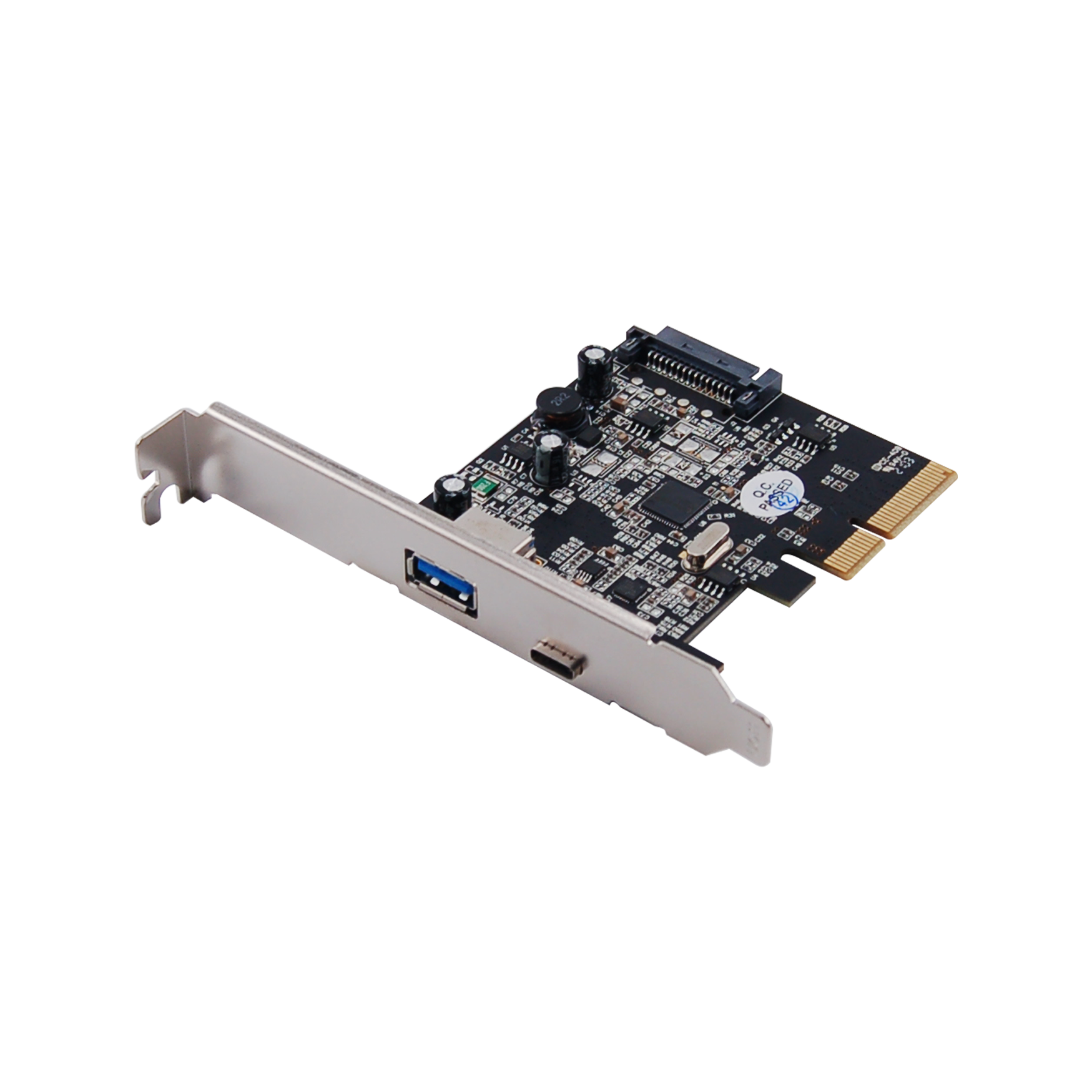

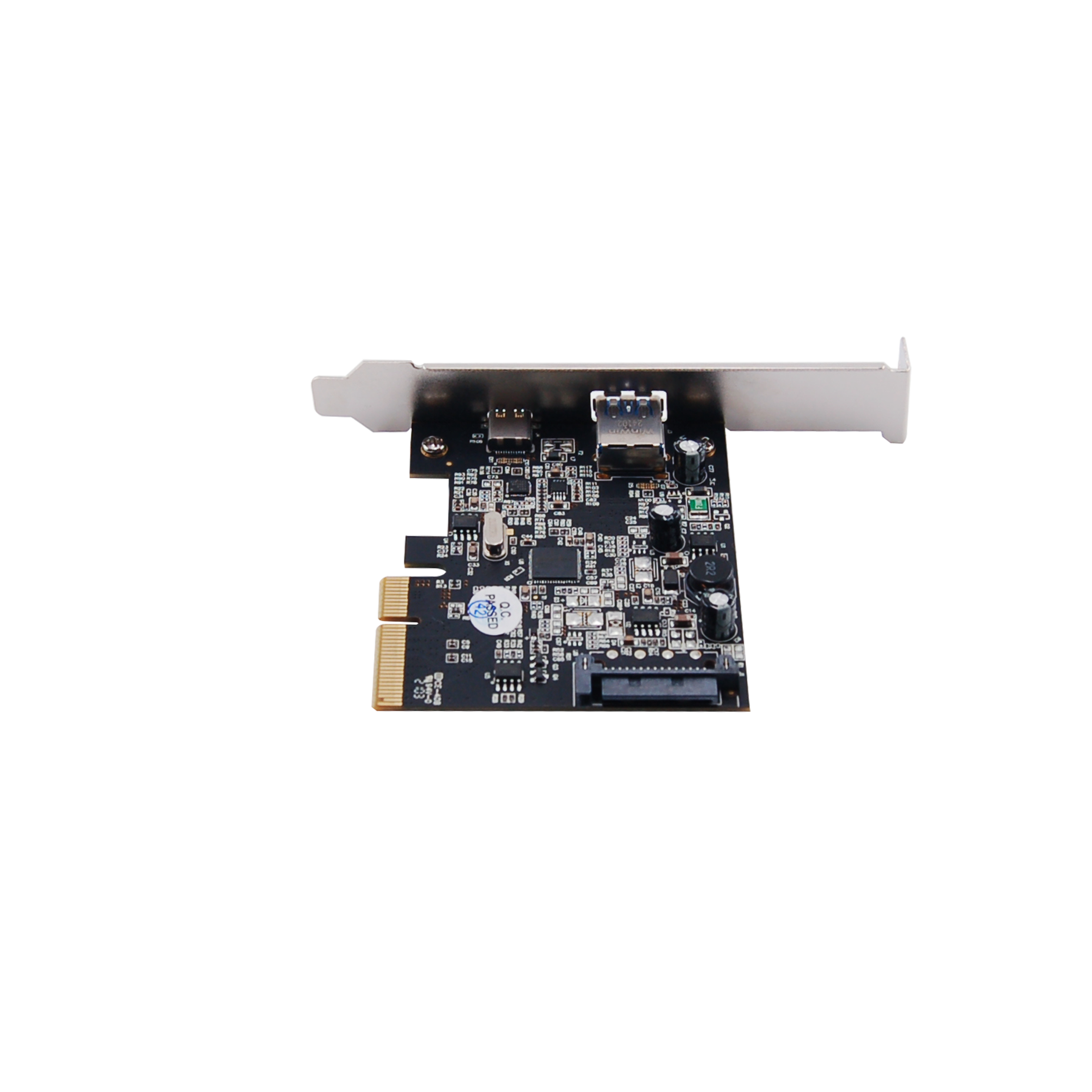

U-1770 PCIe 2-Port USB 10Gbps Host Adapter
Get a Quote ✎
2019/04/26
- 1x USB 10Gbps Type-A Port
- 1x USB 10Gbps Type-C Port
- Total Bandwidth 16Gbps
- Ordering Code: U-1770
- Part No: IE-A51-1120-00-00012
- Solution: ASM3142
This card supporting the proprietary driver for Windows 7 and in box driver for Windows 8.0, Windows 8.1, Windows 10 and various Linux kernels. The application of ASM3142 includes Motherboard, Desktop PC, Notebooks, Workstations, Servers, Add-in cards, PCI Express based embedded platform.
Features
- Support 2 ports of USB3.1
- Support PCI Express Gen-Ⅲ x2
- Compliant with PCI Express Base 3.0 Specification
- Compliant with USB Specification Revision 2.0
- Compliant with USB 3.1 Specification Revision 1.0
- Up to USB3.1 Gen-Ⅱ 10Gbps Bandwidth Performance with Low Latency
- Backward Compatible with USB 3.0/2.0/1.1 Interface
- Support Over Current Detection
- 15-pin SATA Power Connector
| Ordering Code | U-1770 |
|---|---|
| Description | PCIe 2-Port USB 10Gbps Host Adapter |
| Solution | ASM3142 |
| Form Factor | PCIe x4 |
| Bus Width | PCIe 3.0 x2 |
| OS Driver Support | Windows 7/8/8.1/10 (32/64 bit) Windows Server 2012 Linux 3.5 or later MacOS 10.10 or later |
| Total Bandwidth | 16Gbps |
| Connectors | 1x USB 10Gbps Type-A Port 1x USB 10Gbps Type-C Port |
| Data Rates | USB Type-C 10Gbps USB Type-A 10Gbps |
| Operating Temperature | 0℃ – 60℃ |
| Storage Temperature | -10℃ – 70℃ |
| EMC Standards | CE, FCC |
| Dimensions | 92.6L x 120.9W x 21.6H mm |

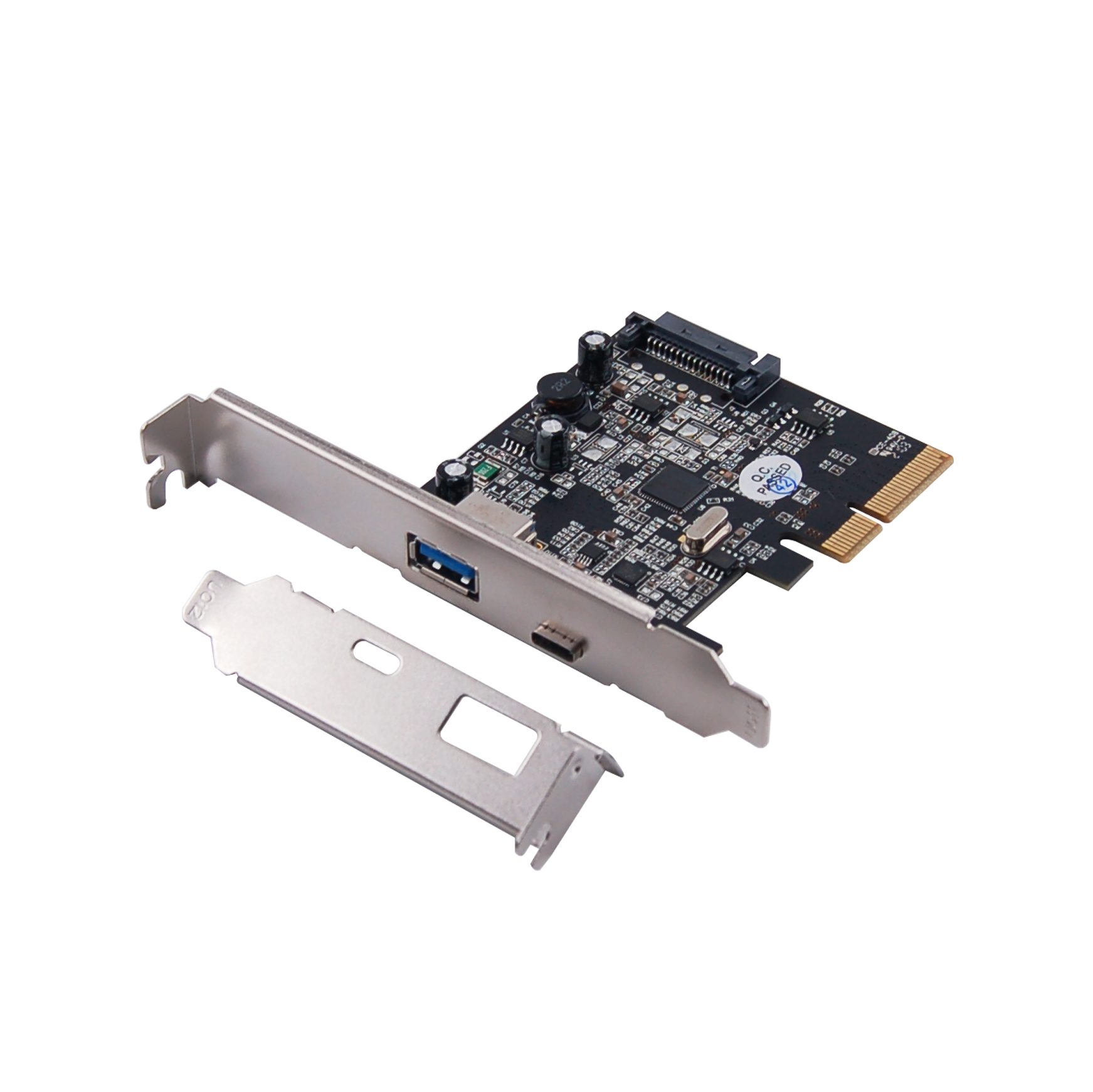

| Package Contents | 1x PCIe 2-Port USB 10Gbps Host Adapter 1x Low Profile Bracket 1x User Manual |
| Packing Information | Retail Box Packing 40 pcs/Carton Measurment: 56.5L x 36W x 43H cm G.W: 7.2 Kg ; N.W: 6.2 Kg |
Manual :
U-1770 User Manual
↧ DownloadDriver :
No Driver Required
