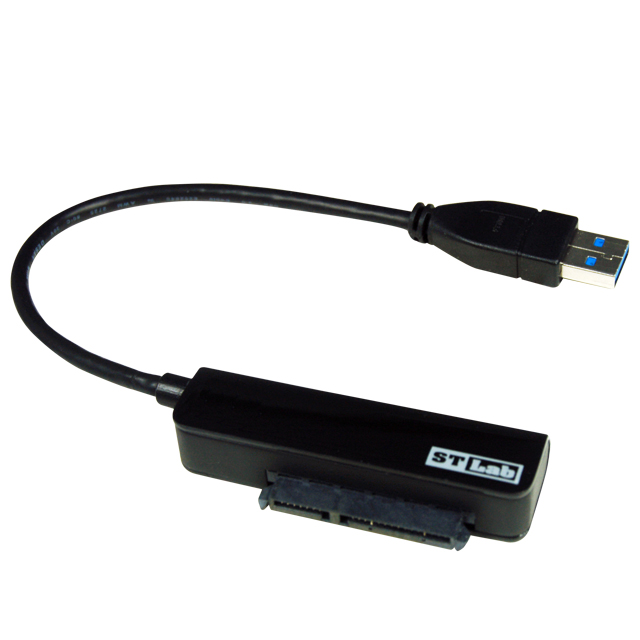

U-1450 USB 3.1 Gen1 Type A to 2.5’’SATA 6G Cable

2016/02/24

Bus bandwidth of Serial ATA up to 6Gbps
Supports SATA 2.5'' hard drives or SSD

  • Ordering Code: U-1450
  • Part No: U3-A37-DF40-11-00012
  • Solution: ASM1153E

The USB 3.1 Gen1 Type-A to 2.5'' SATA 6G Adapter only works with 2.5 in.HDD and SSD, because 3.5 in.HDDs and optical drives require 12V of power and the adapter only provides 5V of power.


Features:

Compliant with USB 3.0 Specification Revision 1.0

Compliant with USB Specifications Revision 2.0

Support USB Super-Speed, High-Speed and Full-Speed Operation

Support USB Mass Storage Class, Bulk-Only Transport Specification Revision 1.3

Support USB Attached SCSI Protocol Specification Revision 1.0

Compliant with Serial ATA Specification Revision 3.0

Bus bandwidth of Serial ATA up to 6Gbps

Supports SATA 2.5'' hard drives or SSD

LED to indicate drive power and activity



System Requirements:

Windows 7/8/8.1/10 (32/64 bit)

Available USB 3.0/3.1 Type-A port



Package Contents:

1 x USB 3.1 Gen1 Type-A to 2.5'' SATA 6G Adapter

1 x User Manual



Packing Information:

* Retail Box Packing

* 40pcs. Per carton

* Measurment: 44x20x19 cm

* G.Weight: 2.8 kg

* N.Weigt: 2.4 kg
