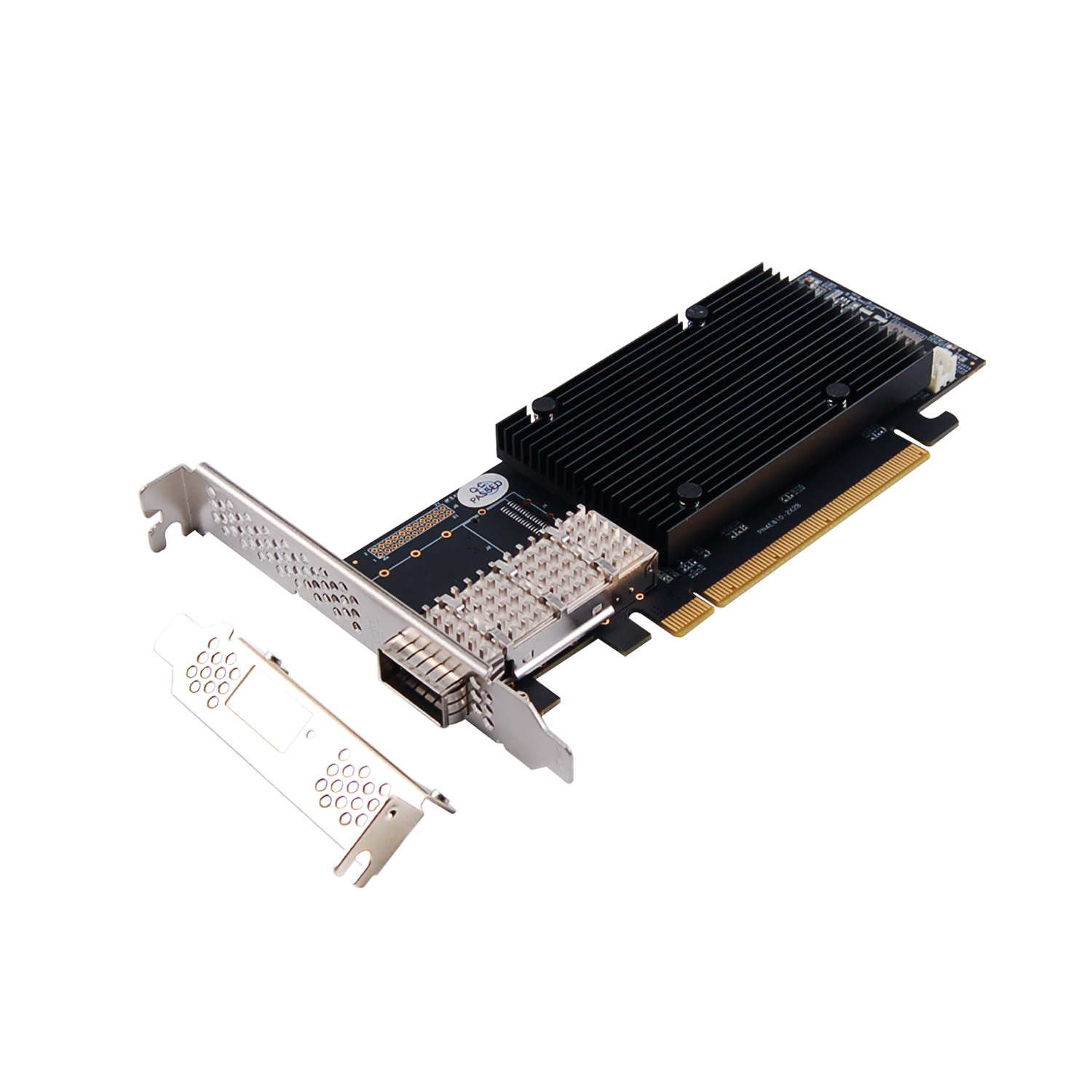

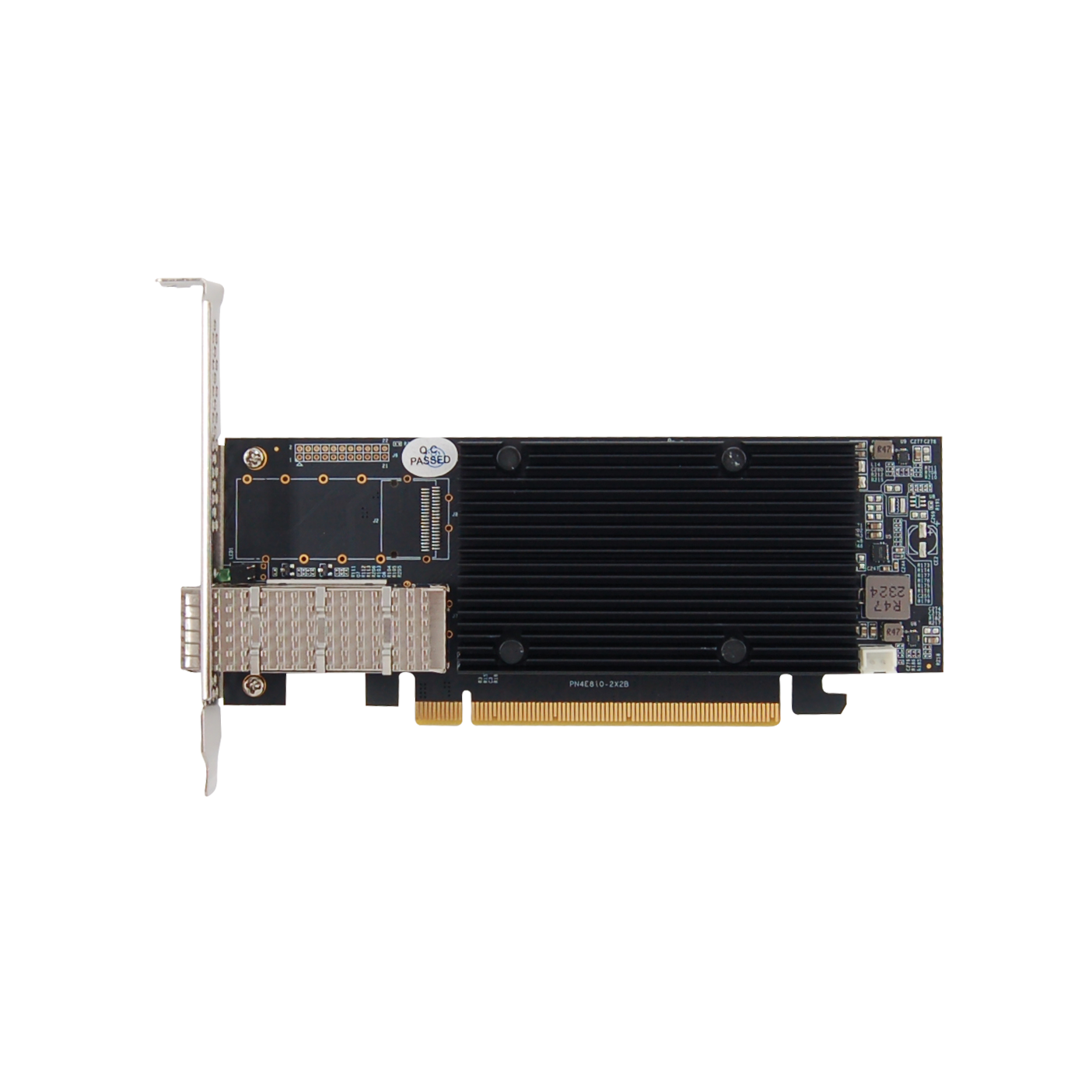

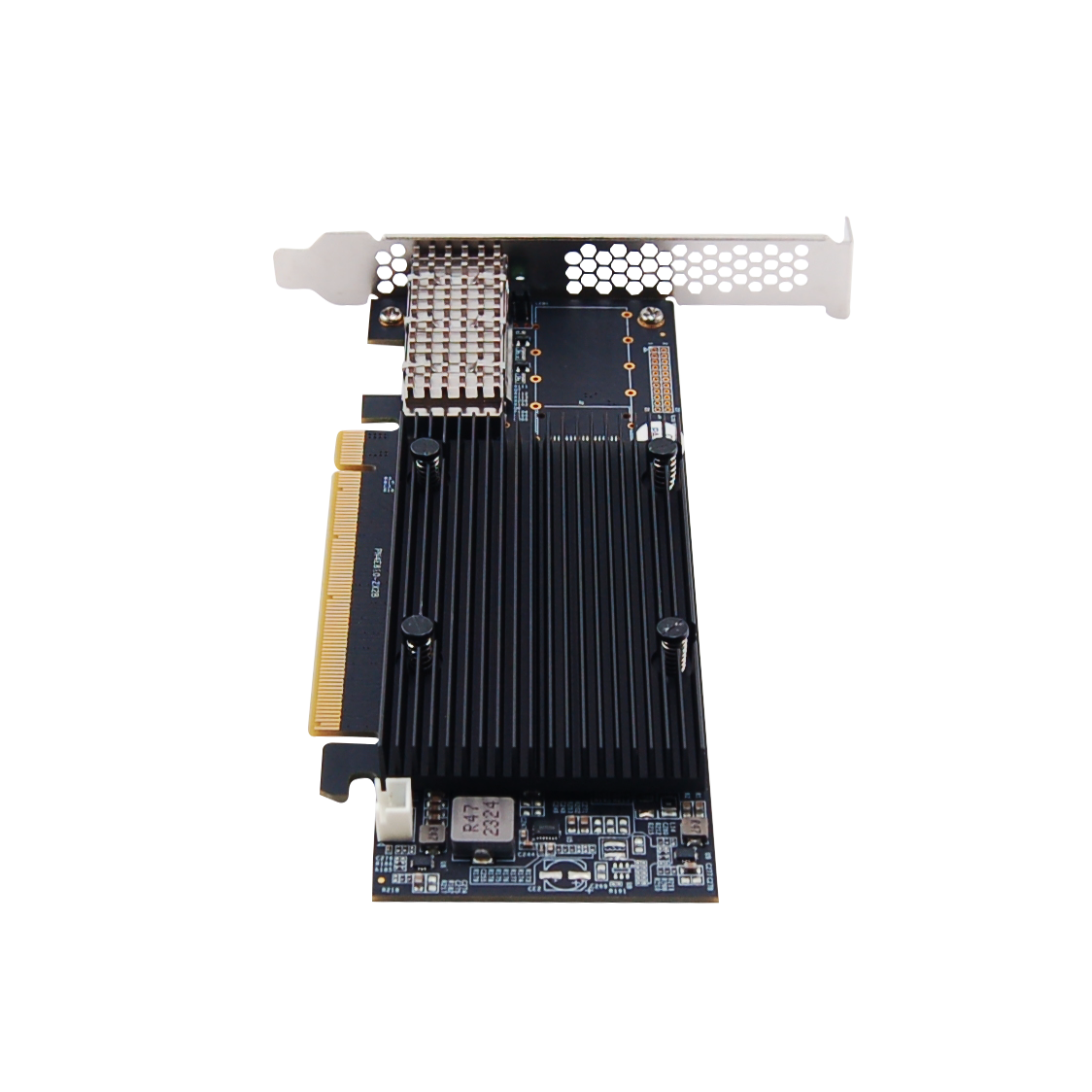

The high performance PCIe 100G QSFP28 Ethernet Adapters provide one QSFP28 ports for network connection of data rate up to 100Gbps.
By using Intel's top of the class E810 Ethernet controller, the adapters are designed to optimize high-performance system workloads for Cloud and Communications.
Features
PCIe Gen4 x16 form factor
Supports standard and low-profile systems
Provides one QSFP28 ports for multiple high-speed connections
Supports 100G/50G/25G/10Gbps optics, AOC and DAC modules
Various performance optimization technologies: ADQ, DDP, DPDK
Supports IEEE1588 PTP v2 Precision Time Protocol
Supports both RDMA iWARP and RoCEv2 for high-speed, lowlatency connectivity to storage targets
1x QSFP28
Requirements
Hardware
The following system specs are recommended minimum
PCIe slot: Available 16-Lane PCI-Express slot Gen 4.0 orlater
Processor: Quad Core 3.0GHz or higher
RAM: 4GB memory or higher
Software
Operating systems supported
Windows 11
Windows Server 2016/2019/2022
Linux 3.16 or later
Package Contents
1 x PCIe 100G QSFP28 Ethernet Adapter
1 x User Manual
