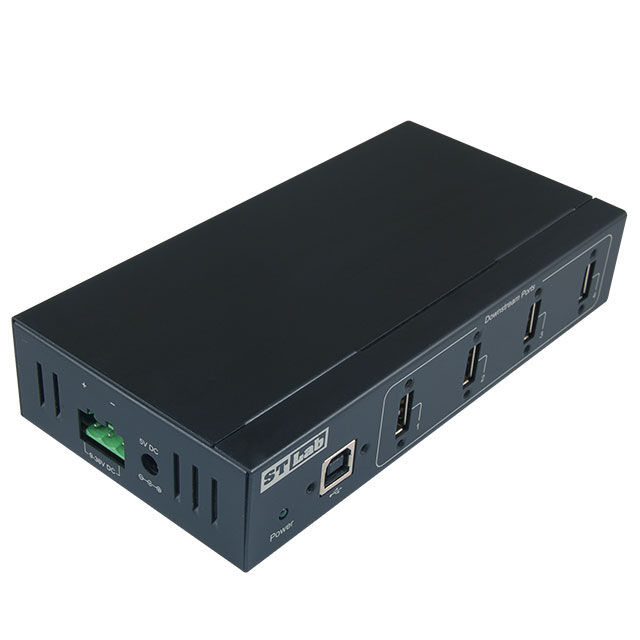

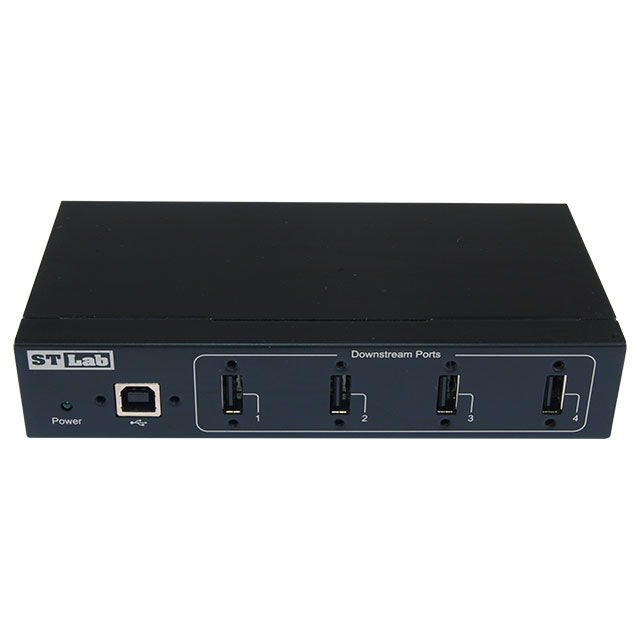

IU-170 Industrial USB 2.0 4-Port Hub

2020/07/01

Industrial USB 2.0 Hub
All-metal chassis
Support additional DIN rail mounting bracket
Support Bus-powered and Self-powered modes

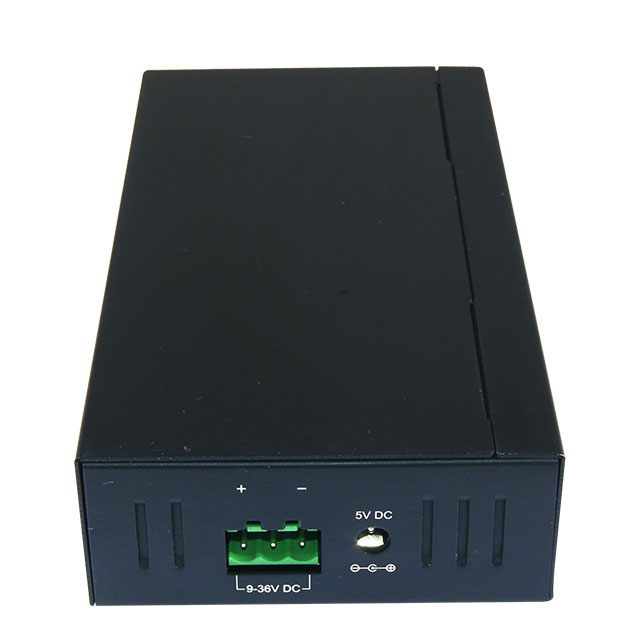

Included terminal block for 9 to 36V DC power input for high power devices

  • Ordering Code: IU-170
  • Part No: U2-G12-UH10-11-00012
  • Solution: GL850G

The industrial USB 2.0 Hub offers a simple way to expand a system current USB capability by providing 4 or 7 additional external USB2.0 ports from a single USB 2.0 host connection.

Fully compliant with the USB 2.0 specification, the industrial USB Hub is backward compatible with 1.x specifications for simultaneous support for older USB peripherals.



Features

Backward compatible with 1.x specification and devices

Support screw locked USB 2.0 cable on all upstream and downstream USB ports

All-metal chassis

Fuse protection on all upstream, downstream ports

Support additional DIN rail mounting bracket

Support Bus-powered and Self-powered modes

Included terminal block for 9 to 36V DC power input for high power devices



System Requirements

Windows XP/Vista/7/8/8.1/10 (32/64 bit)

Linux 2.6.24 or later

Mac OS X 10.10.3 or later



Package Contents

1 x Industrial USB 2.0 Hub

1 x USB 2.0 Cable

1 x Wall Mounting Kit

1 x Terminal block

1 x User Manual


Packing Information:

* Retail Box Packing

* 20pcs. Per carton

* Measurment: 38.5 x 35 x 25 cm
