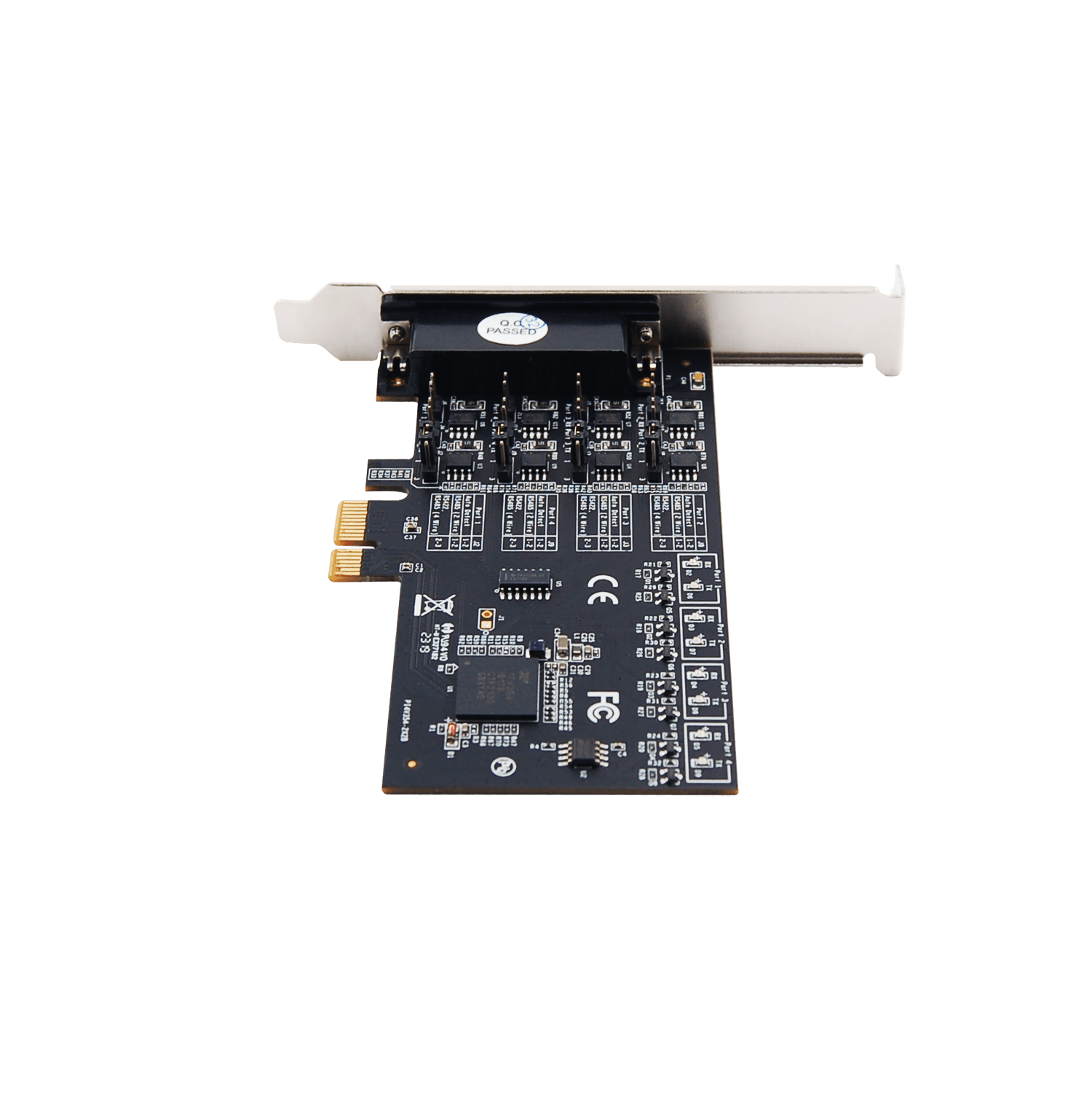

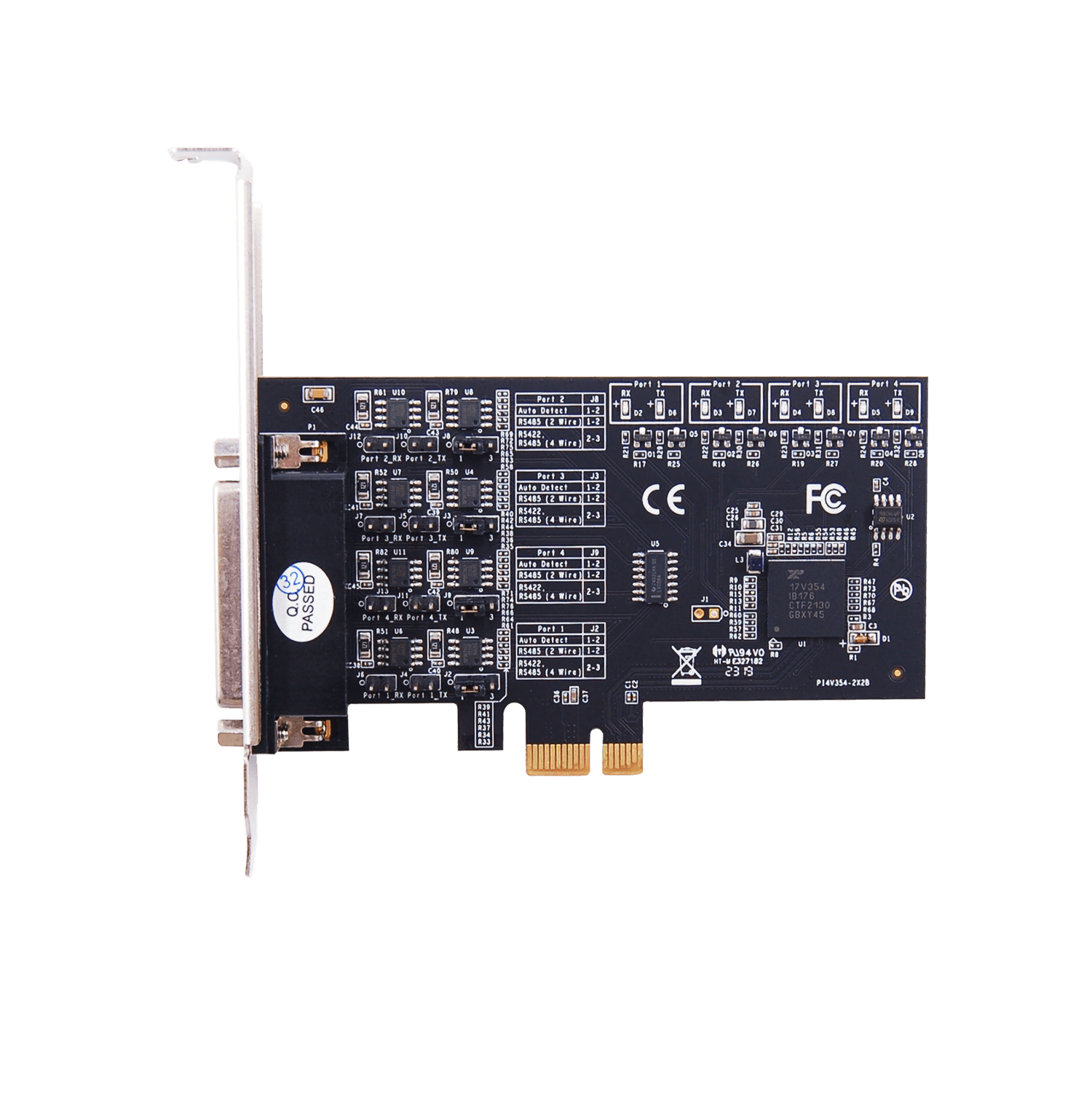

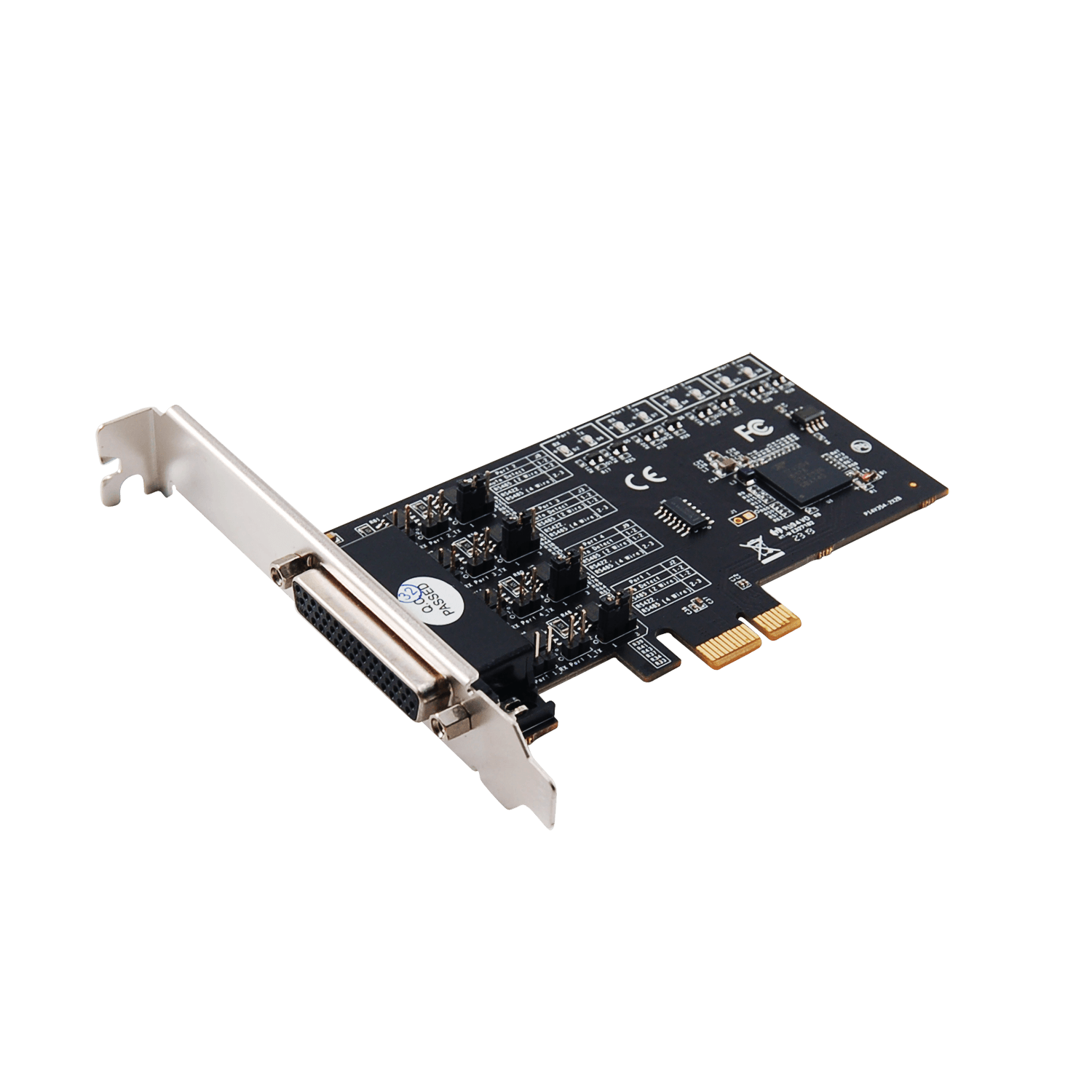

IP-190 PCIe RS-422/485 4-Port Card

Get a Quote ✎

2021/11/15

4x DB9 RS-422/RS-485 serial ports
921.6kbps serial data rate
PCIe 2.0 x1 Form Factor

Ordering Code: IP-190
Part No: IE-K11-M140-00-00012
Solution: Exar XR17V354

RS-422/485 I/O series, a line of PCI Express Multi-port Serial Communication Board, is designed to meet PCI Express Base Specification 2.0. It can be installed in virtually any available PC system and compatible with all major operating systems.Users do not need to manually set jumpers to configure I/O addresses and IRQ locations.This boards offer independent RS-422 and RS-485 ports for connecting kinds of serial terminals on the PC based systems. This board is industrial standard which offer a reliable and high performance solution for serial multi-port communications.

Features

Compliant with PCI Express 2.0 Gen 1
Supports x1, x4, x8, x16 (lane) PCI Express Bus connector keys
256 bytes TX and RX FIFOs
Up to 921.6kbps serial data rate
RS-422 and RS-485 auto detect and switching

Ordering Code	IP-190
Description	PCIe RS-422/485 4-Port Card
Solution	Exar XR17V354
Form Factor	PCIe 2.0 x1
Bus Width	x1 lane PCI Express
OS Driver Support	Windows 7/8.x/10 (32/64 bit) Linux 2.6.32 and newer
Connectors	4x DB9 RS-422/RS-485 serial ports
Data Rates	921.6kbps
Support Low-Profile Bracket	Yes
Operating Temperature	0℃ – 60℃
Storage Temperature	-20℃ – 70℃
EMC Standards	CE, FCC
Dimensions	127.3L x 120.9W x 21.6H mm

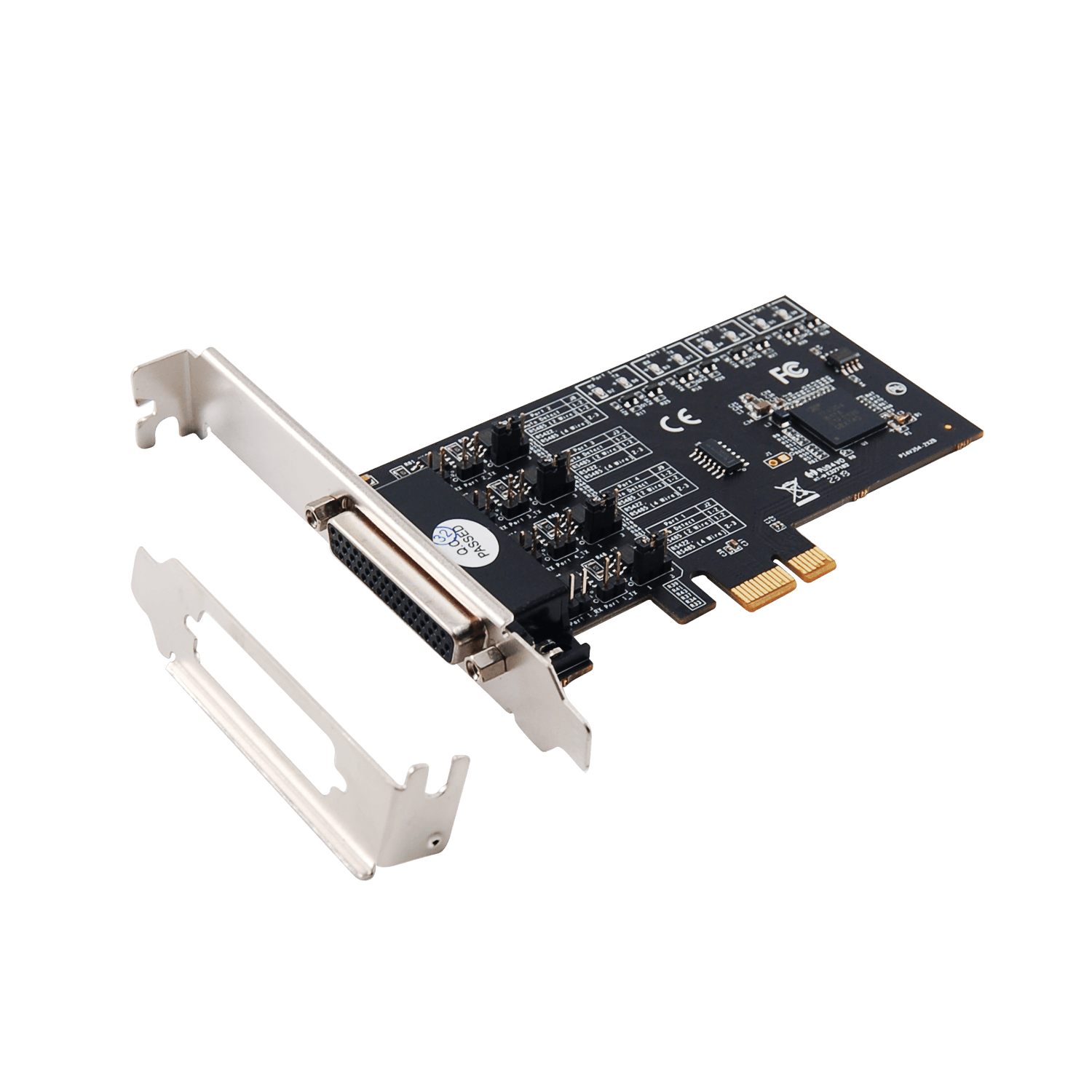

Package Contents	1x PCIe RS-422/485 4-Port Card 1x Fan Out Cable 1x Low-Profile Bracket 1x User Manual
Packing Information	Retail Box Packing 40 pcs/Carton Measurment: 60L x 48W x 34H cm G.W: 16 Kg ; N.W: 15 Kg
