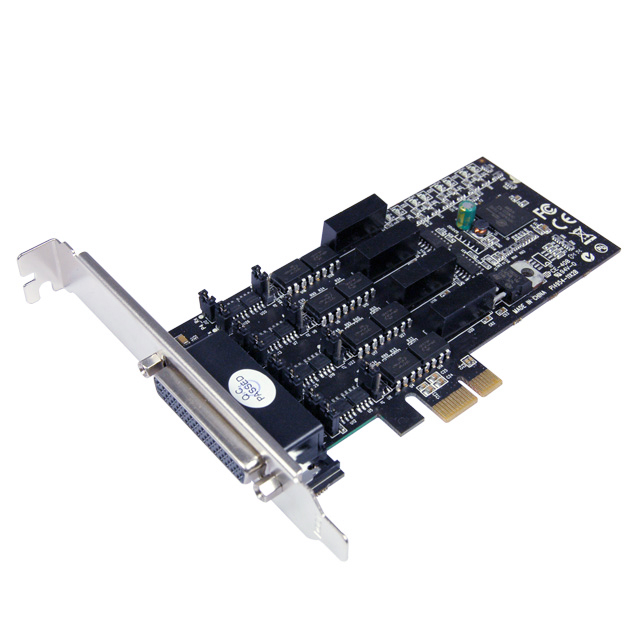

IP-170 PCIe RS-422/485 4-Port Card w/isolationEOL
Get a Quote ✎
2014/08/04
- 4x DB9 RS-422/RS-485 Serial Ports
- 1Mbps Serial Data Rate
- 15KV ESD Protection
- PCIe 1.1 x1 Form Factor
- Ordering Code: IP-170
- Part No: IE-X07-M240-00-00012
- Solution: OXPCIe954
RS-422/485 I/O series, a line of PCI Express Multi-port Serial Communication Board, is designed to meet PCI Express Base Specification 1.1. It can be installed in virtually any available PC system and compatible with all major operating systems. Users do not need to manually set jumpers to configure I/O addresses and IRQ locations. This boards offer independent RS-422 and RS-485 ports for connecting kinds of serial terminals on the PC based systems. This board is industrial stand which offer a reliable and high performance solution for serial multi-port communications.
Features
- Compliant with PCI Express Base Specification 1.1
- Supports x1, x4, x8, x16 (lane) PCI Express Bus connector keys
- Built-in 16C950 compatible UART
- 128-bype deep transmit/receive FIFOs
- Serial communication speeds up to 1Mbps
- RS-422 and RS-485 auto detect and switching
- Low profile form factor
- 15KV ESD protection on all signal pins
- 2KV isolation protection for all signal and power (Isolation version only)
- Plug-n-Play, I/O address and IRQ assigned by BIOS
| Ordering Code | IP-170 |
|---|---|
| Description | PCIe RS-422/485 4-Port Card w/isolation |
| Solution | OXPCIe954 |
| Form Factor | PCIe 1.1 x1 |
| Bus Width | x1 lane PCI Express |
| OS Driver Support | Windows XP/Vista/7/8/10 (32/64 bit) Linux 2.6.x/3.x |
| Connectors | 4x DB9 RS-422/RS-485 Serial Ports |
| Data Rates | 1Mbps |
| Operating Temperature | 0℃ – 60℃ |
| Storage Temperature | -20℃ – 70℃ |
| EMC Standards | CE, FCC |
| Dimensions | 127.3L x 120.9W x 21.6H mm |
| Package Contents | 1x PCIe RS-422/485 4-Port Card 1x Fan Out Cable 1x User Manual |
| Packing Information | Retail Box Packing 40 pcs/Carton Measurment: 60L x 48W x 34H cm G.W: 9 Kg ; N.W: 8 Kg |
