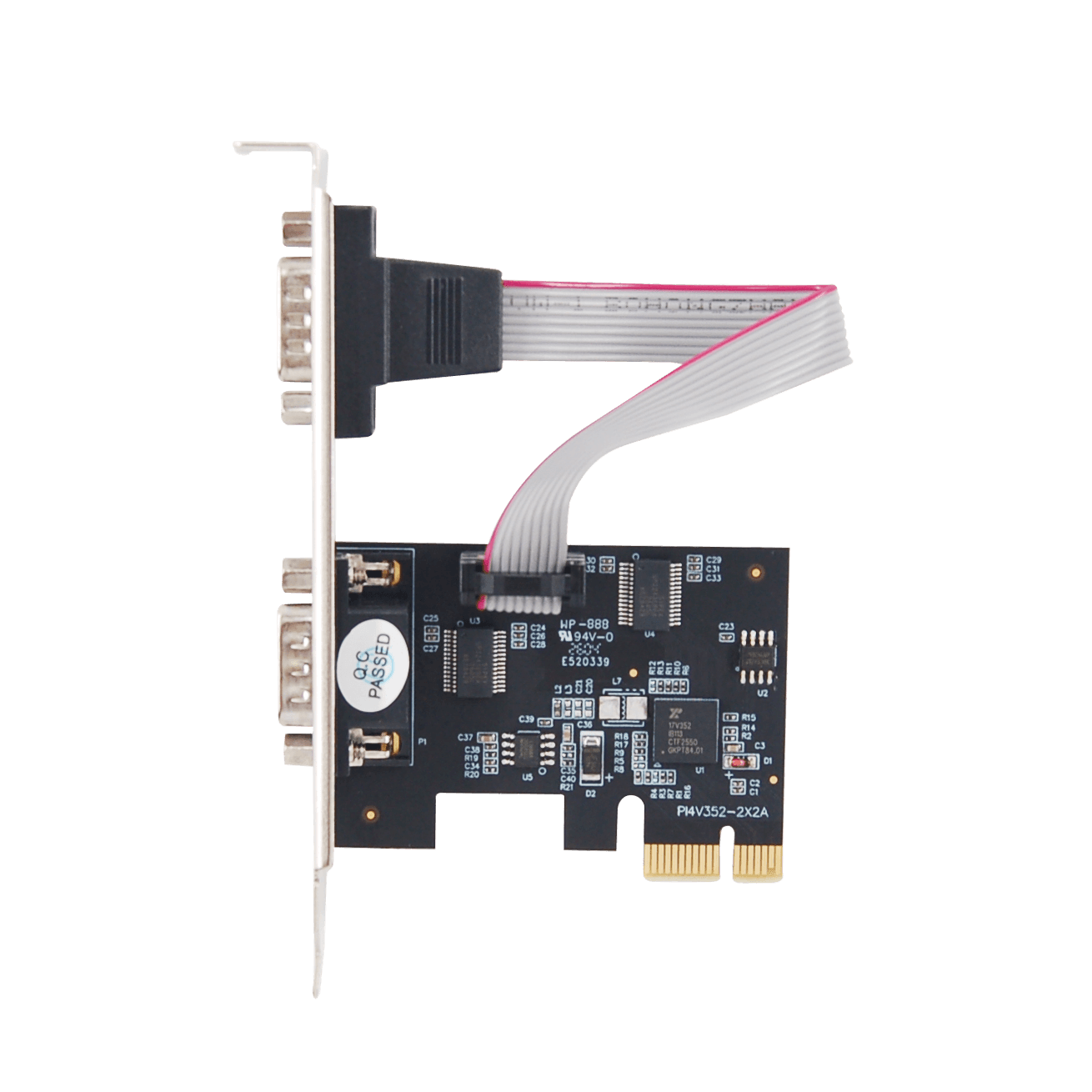

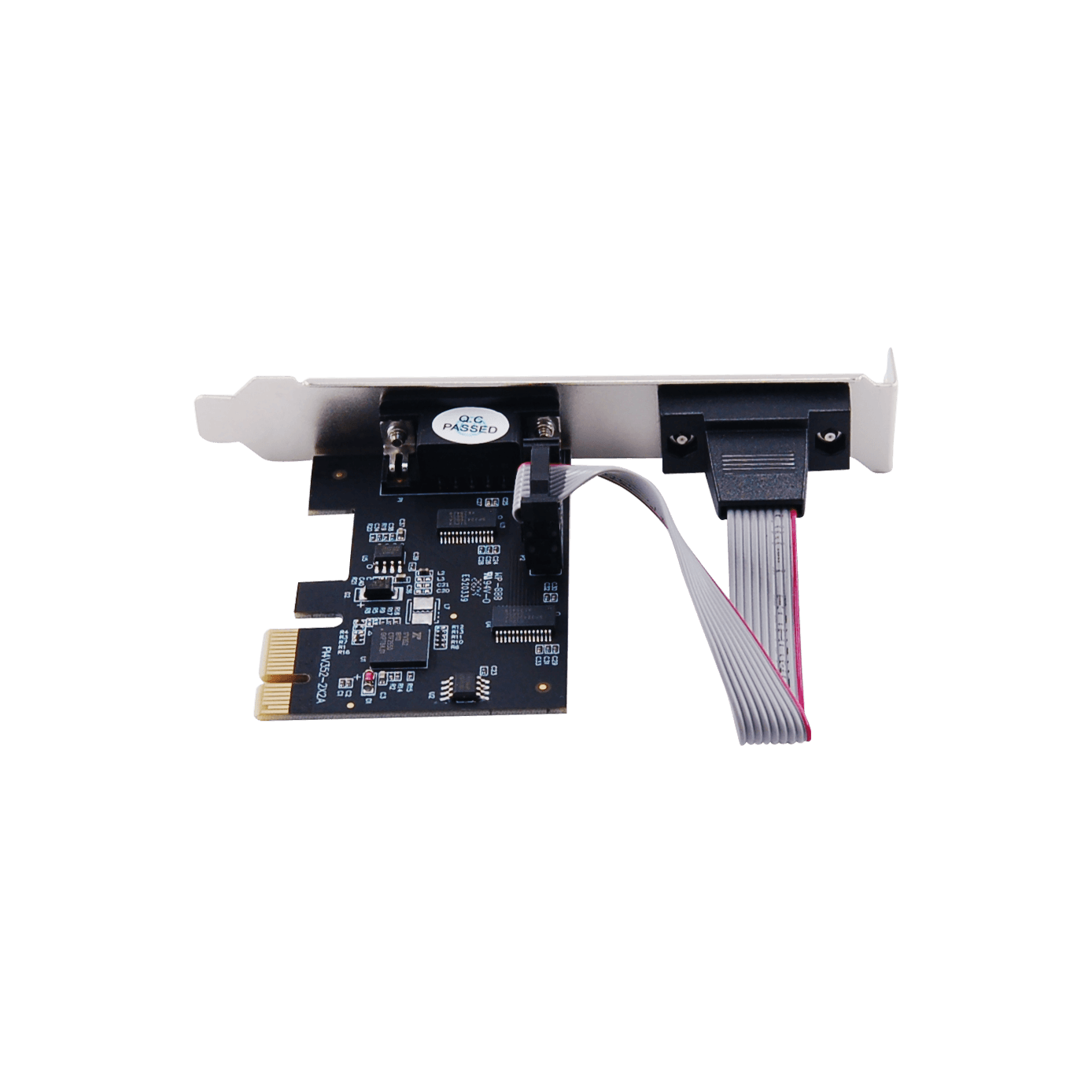

I-560 PCIe 2S Serial Card

Get a Quote ✎

2020/03/20

2x DB9 RS232 Male Serial Ports
230.4 Kbps serial data rate
PCIe 2.0 x1 Form Factor

Ordering Code: I-560
Part No: IE-K10-5220-00-00012
Solution: Exar XR17V352

RS-232 I/O series, a line of PCI Express Multi-port Serial Communication Board, is designed to meet PCI Express Base Specification V2.0. It can be installed in virtually any available PC system and compatible with all major operating systems. Users do not need to manually set jumpers to configure I/O addresses and IRQ locations. This board offer independent serial ports for connecting terminals, modems, printers, scanners, cash registers, bar code readers, keypads, numeric displays, electrical scales, data acquisition equipment, and other serial devices for the PC and compatible systems. This board offers a reliable and high performance solution for serial multi-port communications.

Features

Compliant with PCIe 2.0 Gen 1
Serial data transfer rate up to 230400bps
Supports 2 x UART serial port
Global interrupt status register for both UARTs
256-byte TX and RX FIFOs
PCI-Express x1
DB9 male serial connectors

Ordering Code	I-560
Description	I-560 PCIe 2S Serial Card
Solution	Exar XR17V352
Form Factor	PCIe 2.0 x1
Bus Width	x1 lane PCI Express
OS Driver Support	Windows XP/Vista /7/8.x/10 32/64 bit Linux 2.6.32 or later
Connectors	2x DB9 RS232 Male Serial Ports
Data Rates	230.4 Kbps
Support Low-Profile Bracket	Yes
Operating Temperature	0℃ – 60℃
Storage Temperature	-20℃ – 70℃
EMC Standards	CE, FCC
Dimensions	78.7L x 120.9W x 21.6H mm
Package Contents	1x PCIe 2S Serial Card 1x User Manual
Packing Information	Retail Box Packing 20 pcs/Carton Measurment: 36L x 30W x 23H cm G.W: 2.6 Kg ; N.W: 2.1 Kg
