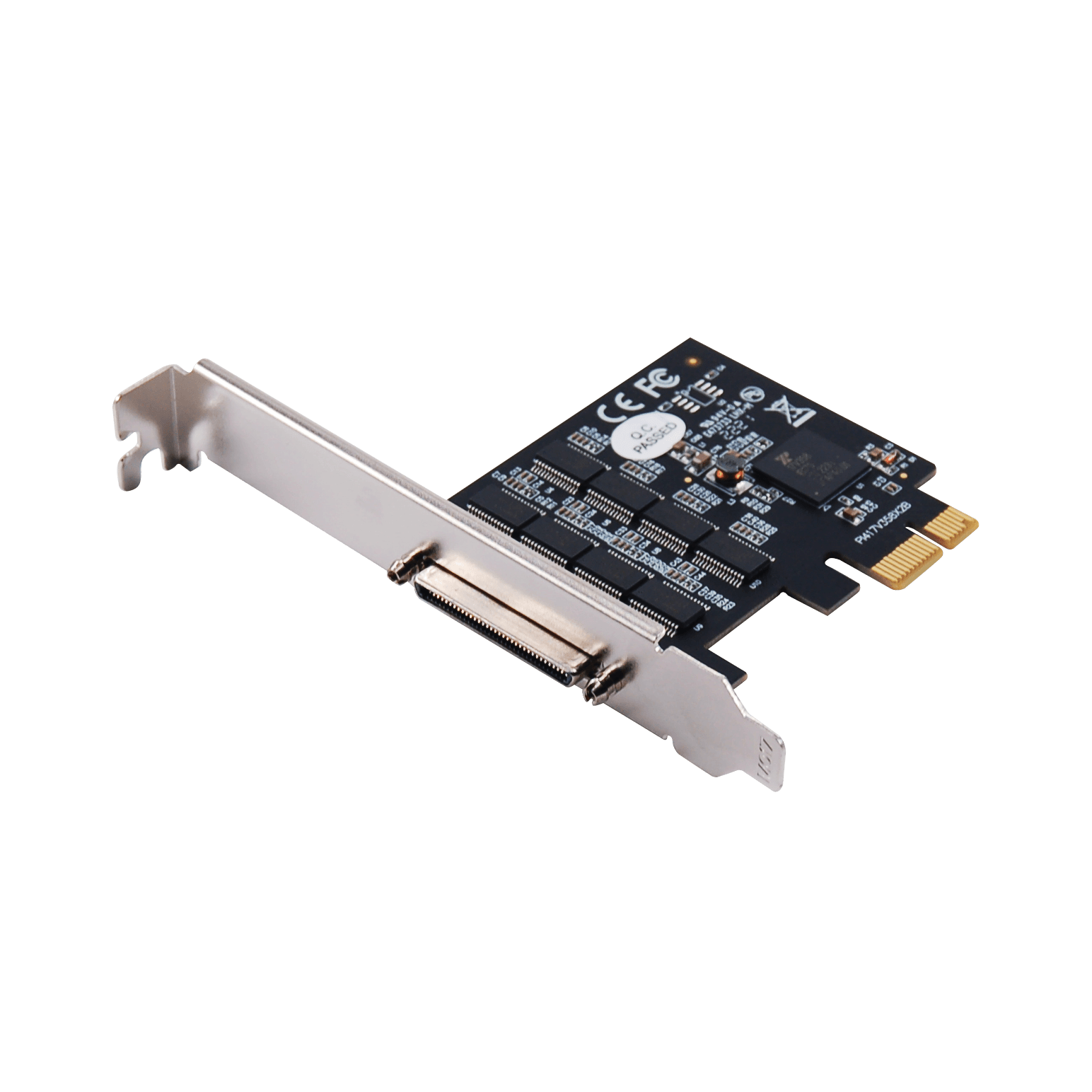

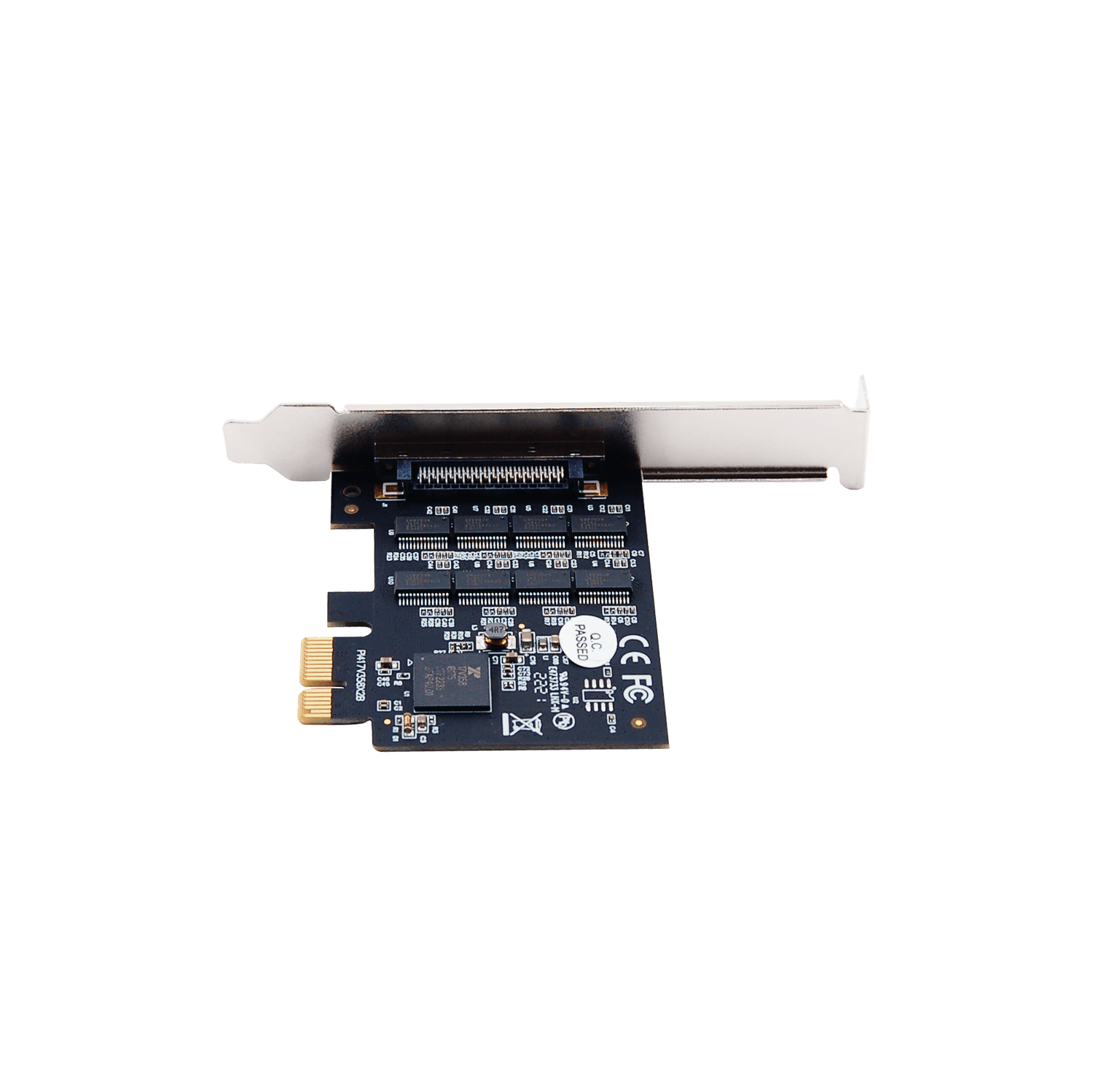

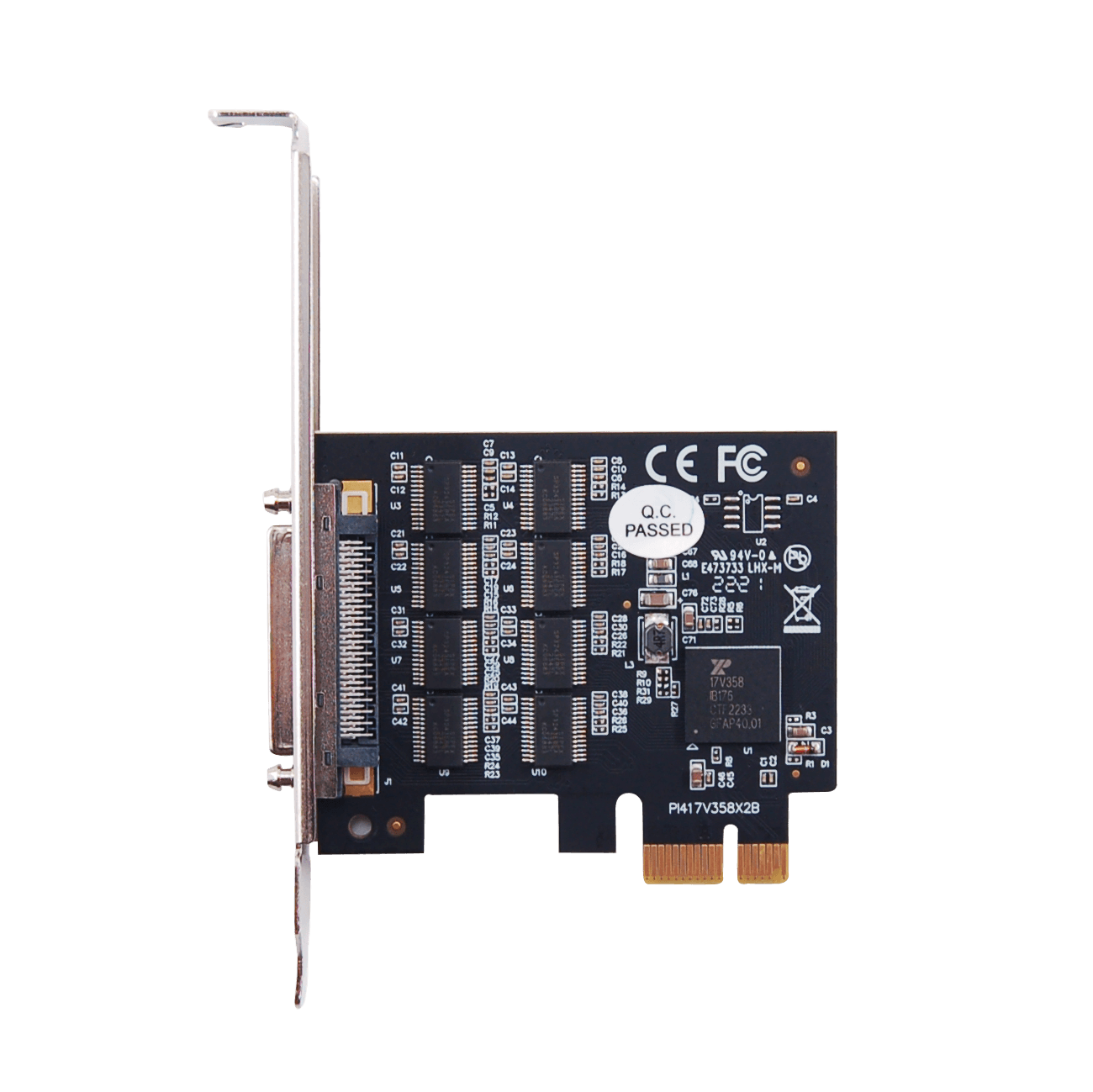

I-530 PCIe 8-Port Serial Card

Get a Quote ✎

2015/03/31

8x DB9 serial 230Kbps Male Port
PCIe 2.0 x1 Form Factor

Ordering Code: I-530
Part No: IE-K09-5180-00-00012
Solution: Exar XR17V358

RS-232 I/O series, a line of PCI Express Multi-port Serial Communication Board, is designed to meet PCI Express Base Specification V2.0. It can be installed in virtually any available PC system and compatible with all major operating systems. Users do not need to manually set jumpers to configure I/O addresses and IRQ locations.This board offer independent serial ports for connecting terminals, modems, printers, scanners, cash registers, bar code readers, keypads, numeric displays, electrical scales, data acquisition equipment, and other serial devices for the PC and compatible systems. This board offers a reliable and high performance solution for serial multi-port communications.

Features

PCIe 2.0 Gen 1 compliant
Supports x1, x2, x4, x8, x16 (lane) PCI Express Bus connector keys
Expands 8 independent RS-232 serial ports with communications speeds up to 230Kbps
With highly reliable Exar native PCI Express 16550 UART controller
256-bype deep transmit/receive FIFOs

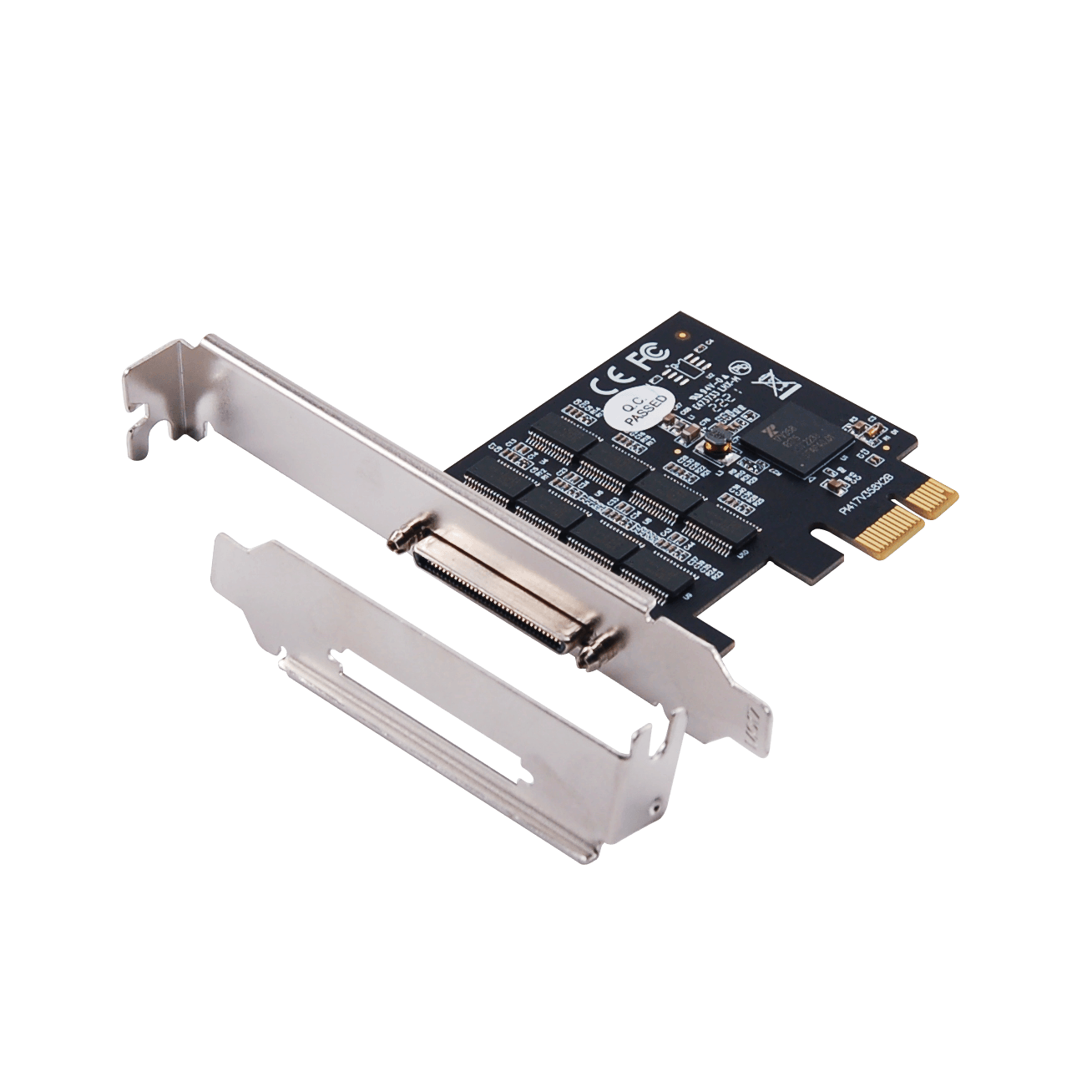

Installs in standard height or low profile chassis with included bracket
Plug-n-Play, I/O address and IRQ assigned by BIOS

Ordering Code	I-530
Description	PCIe 8-Port Serial Card
Solution	Exar XR17V358
Form Factor	PCIe 2.0 x1
Bus Width	x1 lane PCI Express
OS Driver Support	Windows XP/Vista/7/8/8.1/10 (32/64 bit) Linux 2.6.31 or later
Connectors	8x DB9 serial 230Kbps Male Port
Data Rates	DB9 Serial 230Kbps
Support Low-Profile Bracket	Yes
Operating Temperature	0℃ – 60℃
Storage Temperature	-20℃ – 70℃
EMC Standards	CE, FCC
Dimensions	85.29L x 120.9W x 21.6H mm
Package Contents	1x PCIe 8-Port Serial Card 1x Fan Out Cable 1x Low Profile Bracket 1x User Manual
Packing Information	Retail Box Packing 20 pcs/Carton Measurment: 47L x 37.5W x 34H cm G.W: 12.5 Kg ; N.W: 12 Kg
