RS-232 I/O series, a line of PCI Express Multi-port Serial Communication Board, is designed to meet PCI Express Base Specification Ver2.0. It can be installed in virtually any available PC system and compatible with all major operating systems.
Users do not need to manually set jumpers to configure I/O addresses and IRQ locations. Besides this board supports 5VDC or 12VDC of power from each serial port via 1/4/8/9 pin output. It’s convenient for users connecting serial devices without addition external power supply.
This board offer independent serial ports for connecting terminals,modems, printers, scanners, cash registers, bar code readers, keypads,numeric displays, electrical scales, data acquisition equipment, and other serial devices for the PC and compatible systems. This board offers a reliable and high performance solution for serial multi-port communications.
Features
PCIe 2.0 Gen 1 compliant
Supports x1, x2, x4, x8, x16 (lane) PCI Express Bus connector keysExpands 2 independent RS-232 serial ports with communications speeds up to 230Kbps
With highly reliable Exar native PCI Express 16550 UART controller
256-bype deep transmit/receive FIFOs
Installs in standard height or low profile chassis with included bracket
Optional RS-232 signal or power output to serial device
Provides 5VDC or 12VDC power output via pin 1/4/8/9
15KV ESD protection on all signal pins
Plug-n-Play, I/O address and IRQ assigned by BIOS
System Requirements
Windows XP/Vista/7/8/8.1/10 (32/64 bit), Linux 2.6.31 or later
One available PCI Express x1, x4, x8 or x16 slot
Package Contents

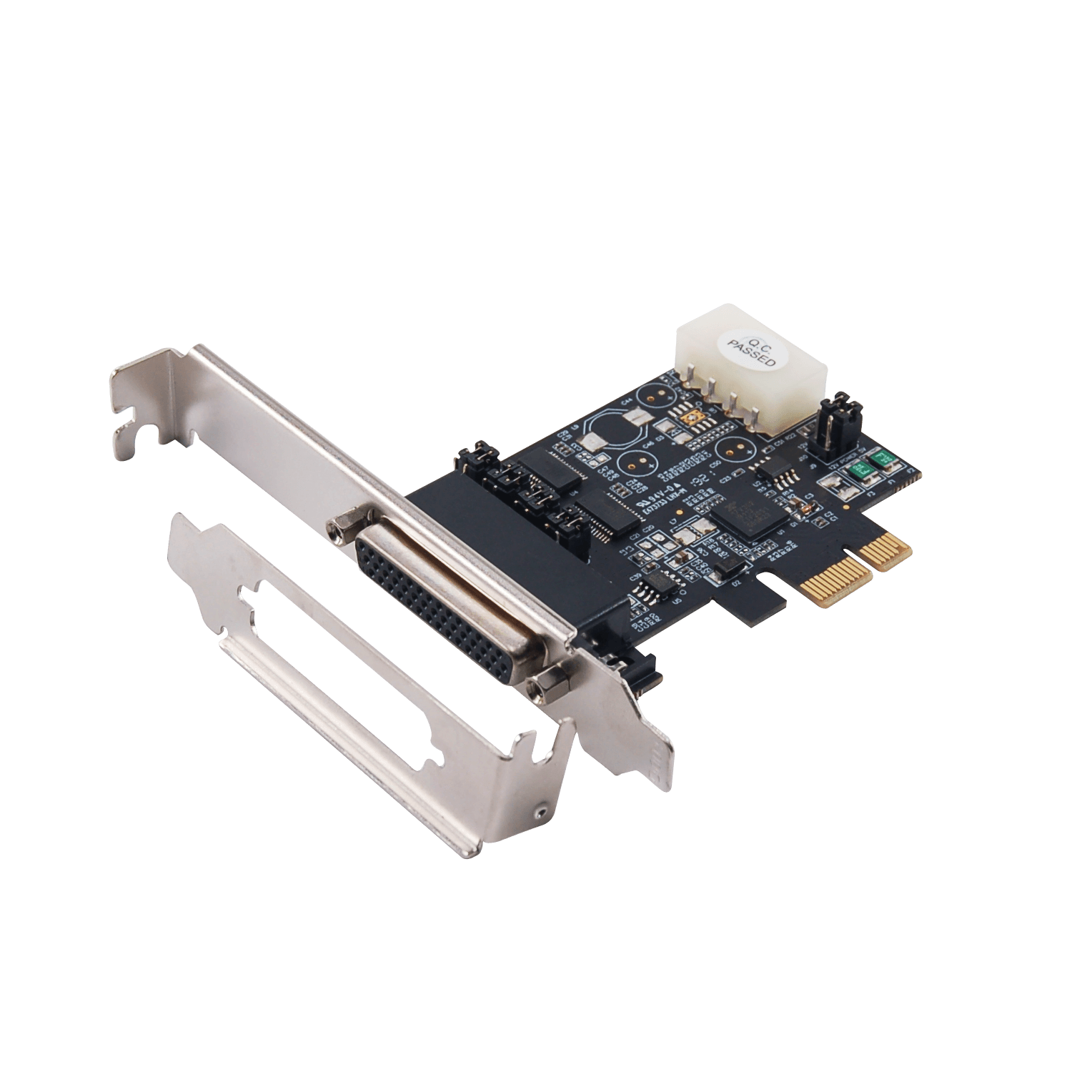

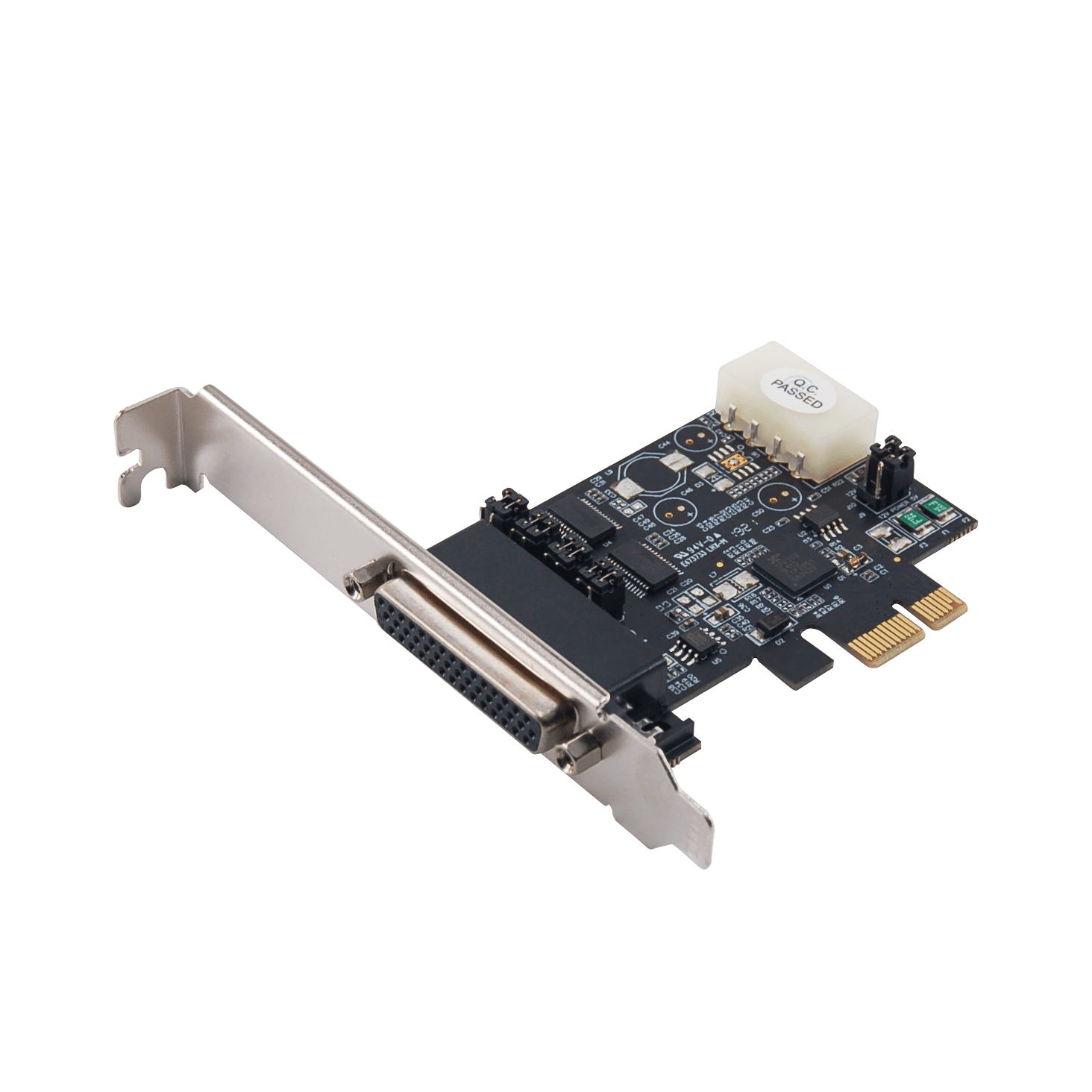

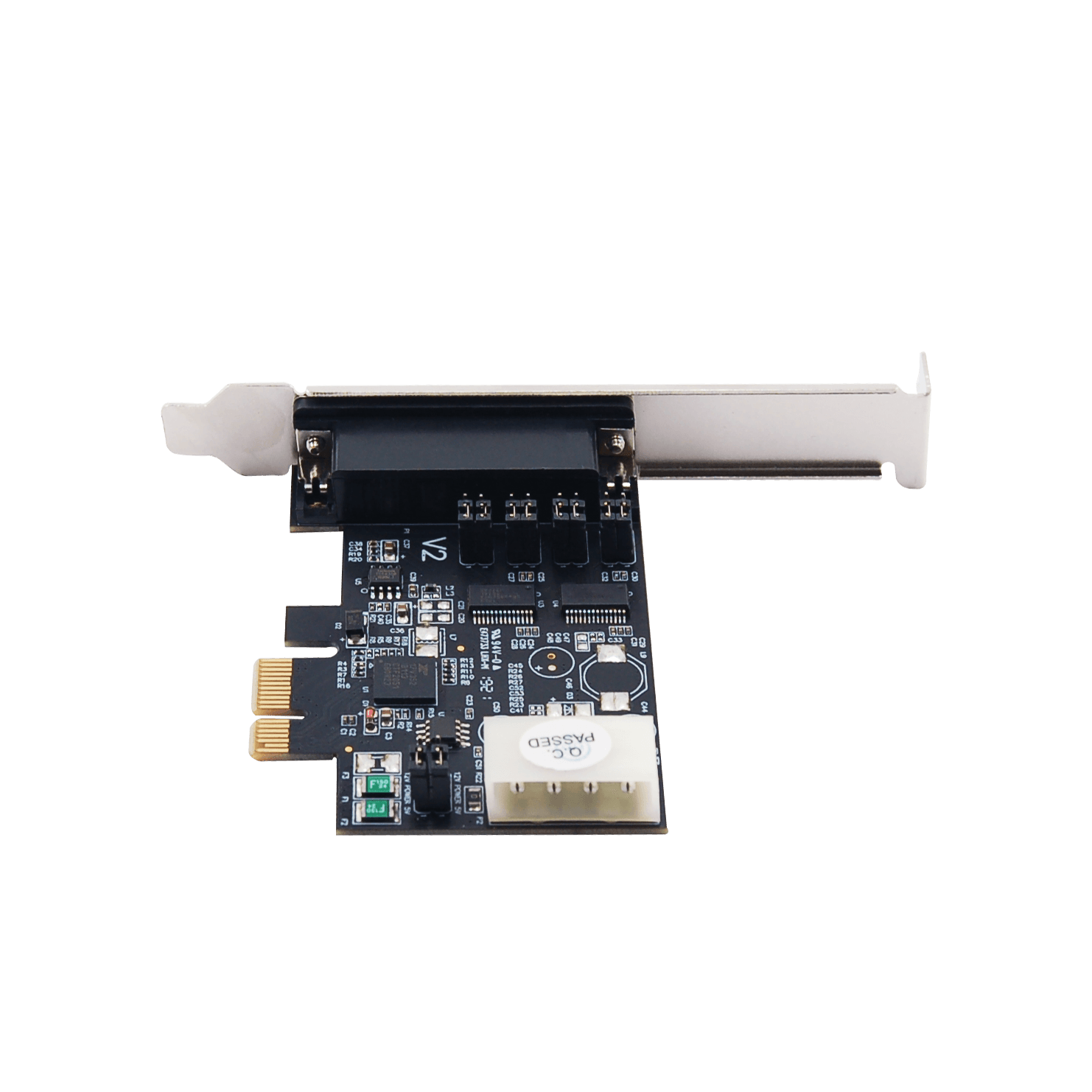

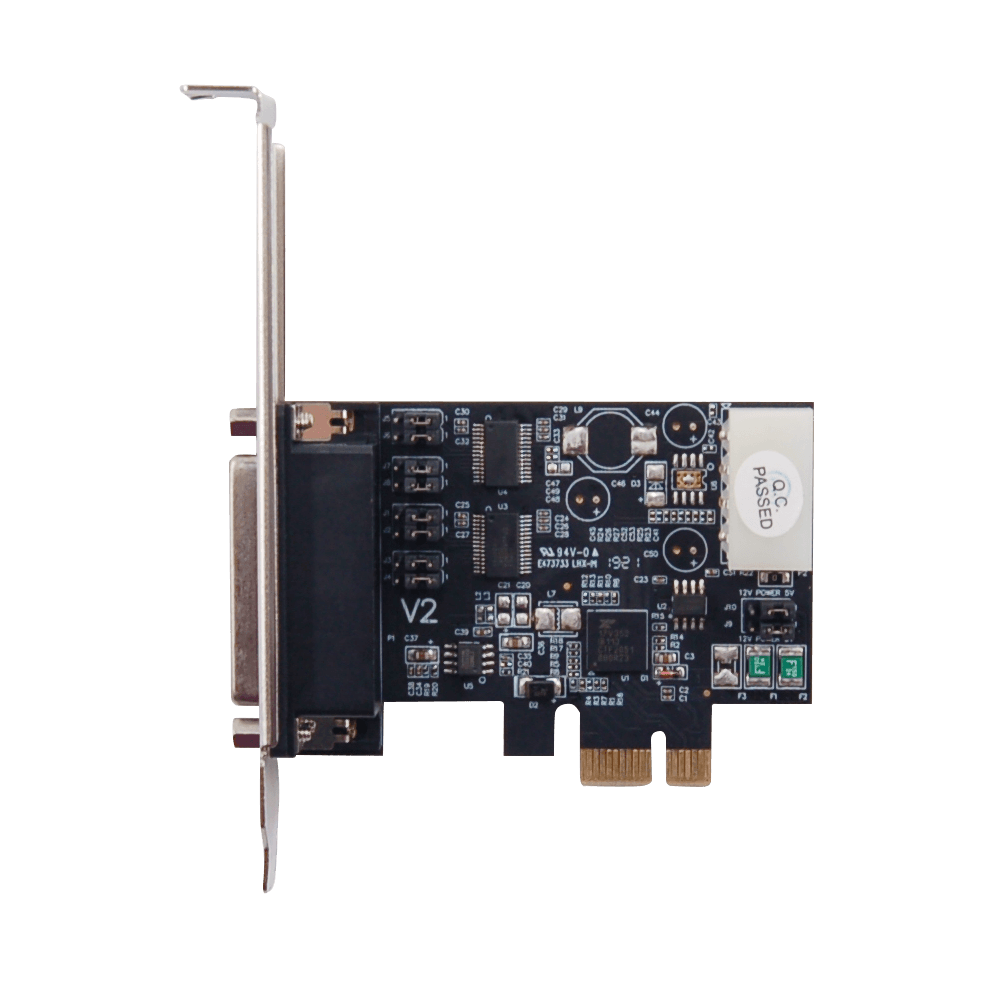

1 x Powered RS-232 2-Port PCIe Card
1 x User Manual
1 x Fan Out Cable
1 x Spare low profile bracket
Packing Information:
* Retail Box Packing
* 40pcs. Per carton
* Measurment: 60x48.5x34.5 cm
