A-560 PCIe mSATA+SATA 4 Channel 6G Adapter


2 x 7Pin SATA connectors and 2 x mSATA (mini PCIe) socket on board
Mounts 2 x mSATA SSDs and 2 x SATA HDDs in PCIe slot
Compatible with SATA 6G, 3G and 1.5G Hard Drives

  • Ordering Code: A-560
  • Part No: IE-M19-B304-00-00012
  • Solution: 88SE9230

A-560 is a single-chip, PCI Express to four SATA Gen III 6Gb/s channels host controller that brings server-class features to the desktop.

Configured with one hard drive and one SSD, the breakthrough technology HyperDuo uses intelligent algorithms to automatically migrate hot data to the SSD, while enabling all data to be safely stored on a larger capacity SATA HDD.

HyperDuo enables 80% of the performance of a SSD at one-third the cost. Besides, PCI Express 2.0 double the bandwidth of the existing PCI Express bus for faster data throughput.

Each PCI-Express 2.0 lane provides up to 5Gb/s of throughput.

Using the onboard RAID firmware, the 4 SATA drives attached to this controller can be easily configured as 4 individual drive with no RAID or with RAID 0, RAID 1, RAID 10, HyperDuo.



Two 7Pin SATA connectors and two mSATA (mini PCIe) socket on board

Mounts two mSATA SSDs and two SATA HDDs in PCIe slot

Compliant with PCI-Express Specification v2.0 and backward compatible with PCI-Express 1.x

Compliant with Serial ATA Specification 3.0

PCI Express x2 interface, and compatible with PCI Express x4, x8 and x16 slots

Supports communication speeds of 6.0Gbps, 3.0Gbps, and 1.5Gbps

Hot plug and Hot Swap

Supports Native Command Queuing (NCQ)

Support ATA and ATAPI commands

Supports Port Multiplier

Compatible with SATA 6G, 3G and 1.5G Hard Drives

Support RAID function: RAID 0, RAID 1, RAID 10 and HyperDuo


System Requirements:

PCI Express x4, x8 or x16 slot

Windows XP/Vista/7/8/8.1/10


Package Contents:

1 x mSATA + SATA PCIe Card

1 x Driver CD

1 x User Manual

1 x SATA Cable

Packing Information:

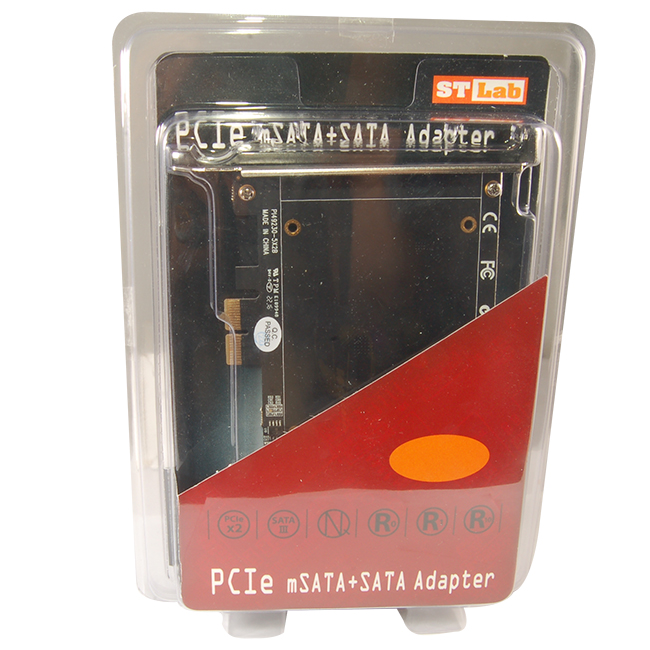

* Retail Blister

* 40pcs. Per carton

* Measurment: 52.7x45.5x35.5 cm
